Installing the pedestrian protection sensor

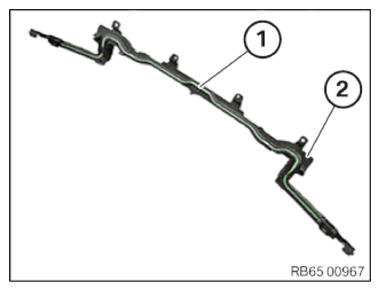

• Check impact absorber (2)  for damage and, if necessary, replace it.
• Carefully insert the pedestrian protection sensor (1)  into the impact absorber (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

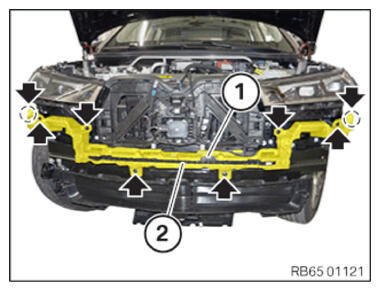

• Guide the impact absorber (1)  with the sensing amplifier (2)  into the support from above and install.
• Make sure that the sensing amplifier (2)  is positioned correctly in the impact absorber (1)  .
• Fasten the expanding rivets (arrows) to the impact absorber (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

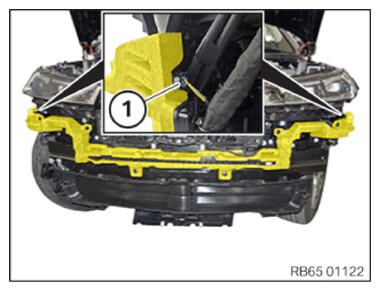

• Connect all connectors (1)  and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT BUMPER COVER .
• Refer to INSTALLING THE FRONT ORNAMENTAL GRILLE/RADOME .
• Refer to INSTALLING THE FRONT RADIATOR GRILL FRAME .
• Refer to INSTALLING THE NUMBER PLATE BASEPLATE FOR THE LICENSE PLATE AT THE FRONT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
• Refer to CLOSING THE ENGINE COMPARTMENT LID .
• Refer to PUTTING THE FRONT RADAR SENSORS INTO OPERATION .
