Installing the left and right headlight
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install headlight
WARNING:
Work on components with requirements for a secure energy supply.
Ensure proper function after a repair.
Ensure proper function after a repair.
- Lines are allowed to have only one repair area.
- Relevant diagnostic notes must be observed. Refer to NOTES ON THE CONTENT AND HANDLING OF DIAGNOSIS INFORMATION .
- When components are replaced, the notices in the applicable BMW parts catalogue must be observed.

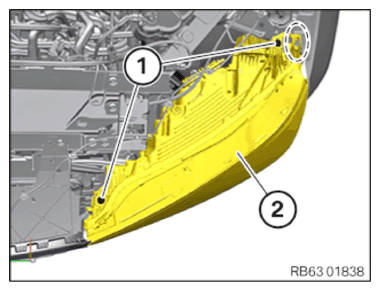

- Feed in the headlight (2) from the front and position it correctly in the marked area.
- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATIONS
| Front light combination, top | ||
|---|---|---|
| Oval-head screw | Tightening torque | 8 Nm |

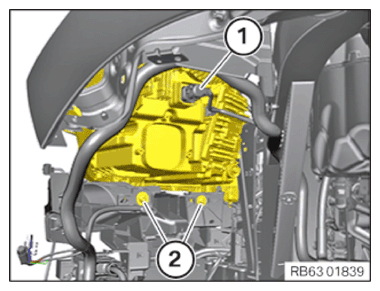

- Tighten the screws (2) .
TIGHTENING TORQUES SPECIFICATIONS
| Front light combination, bottom | ||
|---|---|---|
| Oval-head screw | Tightening torque | 5 Nm |
- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING THE FRONT BUMPER COVER .
- Refer to INSTALLING THE FRONT ORNAMENTAL GRILLE/RADOME .
- Refer to INSTALLING THE NUMBER PLATE BASEPLATE FOR THE LICENSE PLATE AT THE FRONT .
- Refer to INSTALLING THE FRONT RADIATOR GRILL FRAME .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to ADJUSTING HEADLIGHTS .
- Refer to CLOSING THE ENGINE COMPARTMENT LID .
- Refer to PUTTING THE FRONT RADAR SENSORS INTO OPERATION .
