(Installing the mount on the left and right)

NOTE: Description is for left component only. Procedure on the right side is identical.

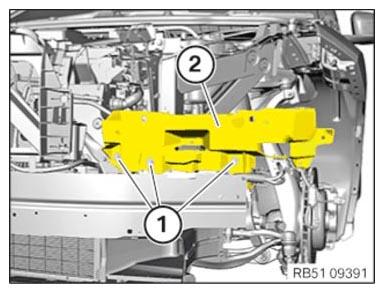

• Install mount (2).
• Tighten the screws (1).
  (TIGHTENING TORQUES SPECIFICATIONS)



  Mount on bumper bracket
  Hexagon screw M6x20	Tightening torque	8 Nm

• Secure the wiring harness to mount (2).

Courtesy of BMW OF NORTH AMERICA, INC.
