(Adjusting headlights)
NOTE:
TECHNICAL INFORMATION
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: TEST REQUIREMENTS FOR HEADLIGHTS VERTICAL AIM ADJUSTMENT .
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: TEST REQUIREMENTS FOR HEADLIGHTS VERTICAL AIM ADJUSTMENT .
NOTE:
The steps shown on one side must be performed on both sides.

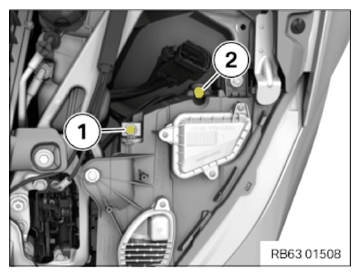

- Perform the headlight adjustment with the adjusting screws (1) and (2).
A definite allocation of adjustment screws is not possible.
The adjustment screw (1) is primarily used for the height adjustment.
The adjustment screw (2) is primarily used for the lateral adjustment.
- Adjust the height at the adjustment screw (1).
- US version: Only adjust the lateral adjustment setting if the plug in the adjustment screw for the lateral adjustment is missing or damaged.
- If applicable, remove the damaged plug.
- Make the lateral adjustment at the adjustment screw (2).
- US version: If the lateral adjustment has been checked or corrected: Replace the plug and press into the adjustment screw for the lateral adjustment without damage .
- Perform reference run. To do so, turn the headlights off and back on.
- Close the hood
- Check the headlight and adjust if necessary.
