Installing the front Vehicle Sound Generator (VSG) with the holder

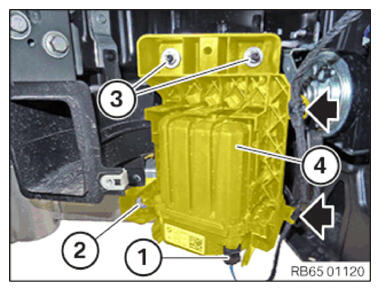

- Feed in and install the Vehicle Sound Generator (VSG) (4) with the holder
- Tighten nuts (3) .
TIGHTENING TORQUES SPECIFICATIONS
| Holder of VSG to body | ||
|---|---|---|
| M6 screw | Tightening torque | 8 Nm |
| hexagon nut M6 | Tightening torque | 8 Nm |
- Tighten down screw (2) .
TIGHTENING TORQUES SPECIFICATIONS
| Holder of VSG to body | ||
|---|---|---|
| M6 screw | Tightening torque | 8 Nm |
| hexagon nut M6 | Tightening torque | 8 Nm |
- Connect connectors (1) and lock.
- Clip in the cable bracket (arrows).
Follow-up work
