When replacing the dashboard trim panel: Remount components

NOTE: RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.

Protect surfaces from damage.

NOTE: TECHNICAL INFORMATION
Wheel alignment is not necessary after removal, installation or replacement.

Preliminary work

Refer to ADJUSTING THE STEERING COLUMN POSITION .
Refer to DEACTIVATING VEHICLE ELECTRICAL SYSTEM .
Refer to REMOVING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
Refer to REMOVING THE STEERING WHEEL (SPORTS STEERING WHEEL) .
Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
Refer to REMOVING STEERING COLUMN SHROUD LOWER SECTION .
Refer to REMOVING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT .
Refer to REMOVING CENTER ARMREST .
Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .
Refer to REMOVING CUP HOLDER .
Refer to REMOVING THE WIRELESS CHARGING STORAGE .
Refer to REMOVING THE CENTER STACK MODULE .
Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .
Refer to REMOVING FOOTWELL TRIM PANEL ON THE RIGHT .
Refer to REMOVING THE CENTER CONSOLE .
Refer to REMOVING THE LEFT AND RIGHT A-PILLAR TRIM PANEL .
Refer to REMOVING THE TRIM FOR THE HEAD-UP DISPLAY .
Refer to REMOVING THE SIDE COVER ON THE LEFT AND RIGHT DASHBOARD .
Refer to REMOVING THE DECORATIVE STRIP ON THE DASHBOARD AT LEFT AND RIGHT .
Refer to REMOVING LIGHT OPERATING UNIT .
Refer to REMOVING THE HEAD UNIT HIGH (HU-H) (WITH HOLDER). .
Refer to REMOVING THE INSTRUMENT CLUSTER (KOMBI) .
Refer to REMOVING THE MID-RANGE SPEAKER FROM THE DASHBOARD .
Refer to REMOVING INSTRUMENT PANEL TRIM .

Remove tweeter in the dashboard

Unthread the cable of the tweeter from the guide (arrowed).
Unlock and disconnect the connector (1) and put it aside.
Disengage the tweeter together with the holder (2) upwards from detents (3) .
Tilt and unthread the treble loudspeaker upwards using the holder (2) on the left.

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the glove compartment damper

Disconnect the connector (1) .
Remove the retaining pins (2) outward.
Twist the glove compartment damper (3) approx. 45° counterclockwise and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove glove box lid

Pull out and remove the hinge bolt (1) from the hinge.
Thread out and remove glove box lid (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

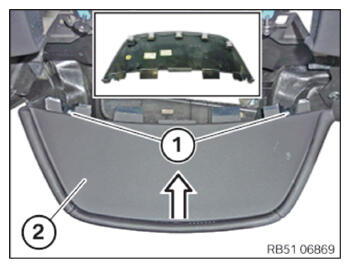

Loosen screws (1) .
Turn the cover (2) above the instrument combination (KOMBI) in the direction of the arrow to release it from the clamps.
Correctly mount the cover (2) on to the new part and tighten the screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Remount any present cables on the new dashboard trim.
Remount any existing small parts.

Install glovebox cover

Feed in the glove box lid (2) .
Install the hinge bolt (1) and engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the glove compartment dampers

Install the glove compartment damper (3) and twist it about 45° clockwise.
Mount the retaining pin (2) .
Connect plug (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the front passenger airbag

WARNING: Airbag unit.
Danger! Immobilization period-threatening injuries!

Before working on the airbag, disconnect the negative battery cable from the battery.
Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

WARNING: Pyrotechnic components.
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

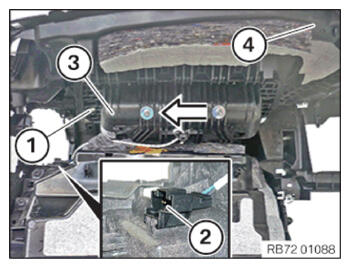

Position the front passenger airbag (3) on the dashboard (4) and shift in direction of arrow.

NOTE: TECHNICAL INFORMATION
The screw connection of the front passenger airbag is always done independent of the previous attachment point on the vehicle exterior , refer to position 1 .

Tighten down screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Front passenger airbag to dashboard
Oval-head screw	tightening torque	2 Nm

Position the connector housing (2) and engage.

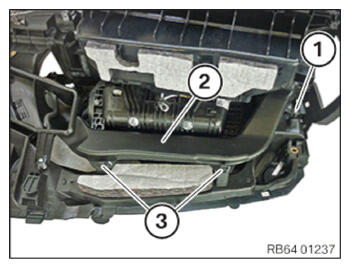

Position the air duct (2) and engage at the detents (3) .
Tighten down screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

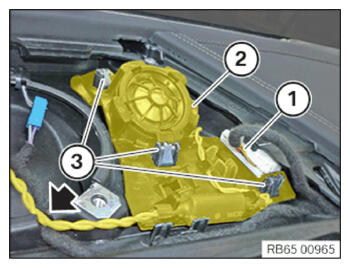

Installing the tweeter in the dashboard

First, feed in tweeter with the holder (2) slightly tilted to the right side.
Position tweeter correctly with the holder (2) and engage at the detents (3) .
Insert the cable of the tweeter into the guide (arrow).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING DASHBOARD TRIM .
Refer to INSTALLING THE MID-RANGE SPEAKERS IN THE DASHBOARD .
Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
Refer to INSTALLING THE HEAD UNIT HIGH (HU-H) (WITH BRACKET) .
Refer to INSTALLING THE LIGHT OPERATING UNIT .
Refer to REMOVING THE DECORATIVE STRIP FROM THE LEFT AND RIGHT DASHBOARD .
Refer to INSTALLING THE SIDE COVER ON THE DASHBOARD AT LEFT AND RIGHT .
Refer to INSTALLING THE TRIM FOR THE HEAD-UP DISPLAY .
Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
Refer to INSTALLING THE CENTER CONSOLE .
Refer to INSTALLING RIGHT FOOTWELL TRIM .
Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
Refer to INSTALLING THE CENTER STACK MODULE .
Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
Refer to INSTALLING THE CUP HOLDER .
Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
Refer to INSTALLING CENTER ARMREST .
Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
Refer to INSTALLING THE STEERING WHEEL (SPORTS STEERING WHEEL) .
Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
Refer to CHECKING THE AIRBAG FOR FUNCTION .
