Installing the instrument cluster (KOMBI)

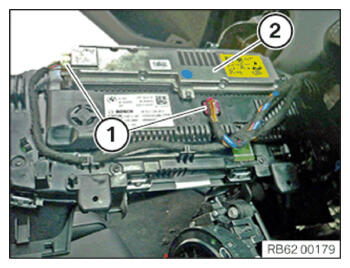

- Connect the plug connector (1)
to the instrument cluster (KOMBI) (2)
.

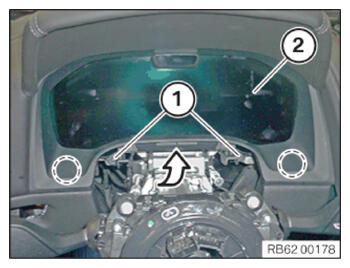

- Guide in the instrument cluster (KOMBI) (2) and snap into the detents.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Instrument cluster (KOMBI) to support | ||
|---|---|---|
| Screw | tightening torque | 1.8 Nm |
Follow-up work
- Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
