Remove cup holder

Precondition

• Lid of the storage compartment is open

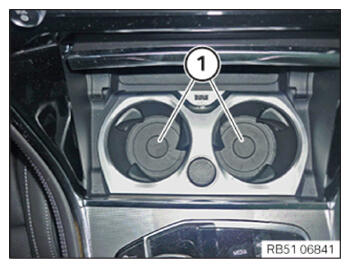

• Remove the insert (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

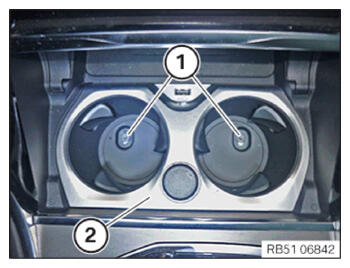

• Loosen screws (1).
• Feed the cup holder (2) out to the top.
• Unlock associated plug connections and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
