Install steering column shroud lower section

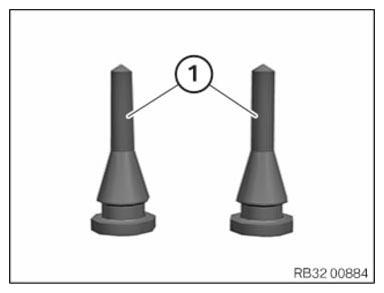

• Remove the rubber plugs (1) from the steering column shroud lower section.

  Courtesy of BMW OF NORTH AMERICA, INC.

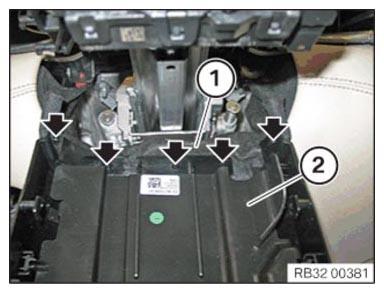

• Clip in the gap cover (1) into the steering column shroud lower section (2) (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

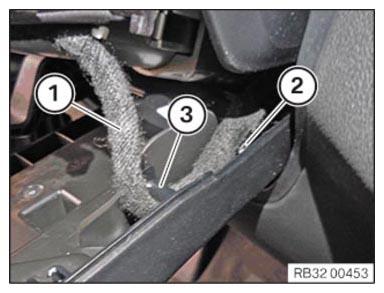

• Secure the wire (1) to the holder (2).
• Insert the line (1) at the guide (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

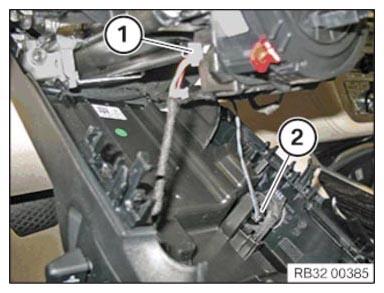

• Connect connectors (1) and (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

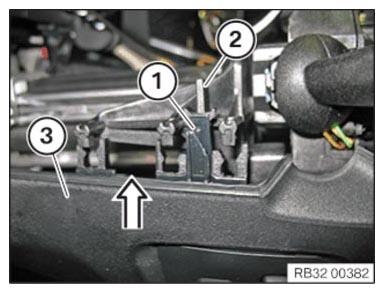

• Align the steering column shroud lower section (3) to the steering column using the retaining lug (2).
• Push the steering column shroud lower section (3) upwards in arrow direction until the lug (1) locks with the retaining lug (2).

Courtesy of BMW OF NORTH AMERICA, INC.
