Installing the steering wheel (sports steering wheel)

Check the neutral position of the coil spring:

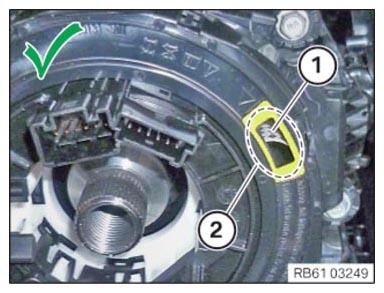

• Version A:

  Check the mark (1) on the coil spring in the inspection glass (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The mark (1) on the coil spring is not visible.

Measure

• Turn the coil spring cassette until the mark (1) on the coil spring is visible in the inspection glass (2).

Check

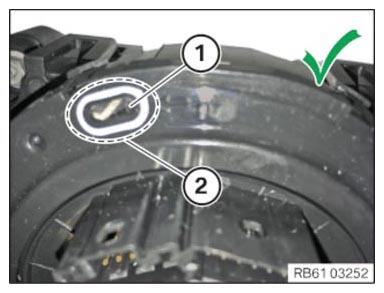

• Version B:

  Check the mark (1) on the coil spring in the inspection glass (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The mark (1) on the coil spring is not visible.

Measure

• Turn the coil spring cassette until the mark (1) on the coil spring is visible in the inspection glass (2).

Check

• Possibly, a micro-encapsulated screw (3) has been installed.
• Check the screw connection.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Screw (3) is micro-encapsulated.

Measure

• Clean the thread in the steering column.

  Replace the screw (3).

  Parts:  Screw

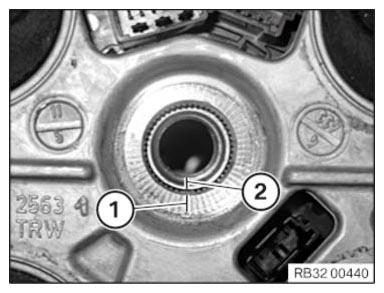

• Align mark (1) on steering wheel to mark (2) on steering column.
• Connect steering wheel.

  Courtesy of BMW OF NORTH AMERICA, INC.

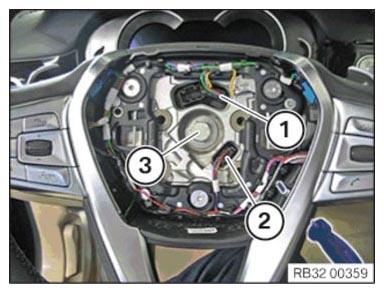

• Connect connector (1).
• If installed: Connect connector (2).
• Tighten screw (3).

Steering wheel to steering column
M14 Only with micro-encapsulated screw: Replace screw.	tightening torque	62.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
