Removing the steering column switch cluster (SZL)
Removing the steering column switch cluster (SZL)

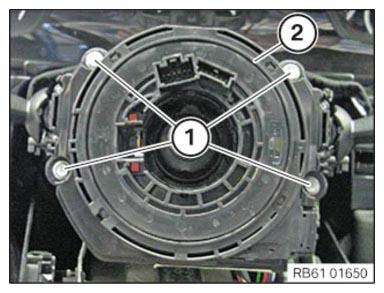

Loosen screws (1).
Remove the steering column switch cluster (SZL) (2).
Courtesy of BMW OF NORTH AMERICA, INC.

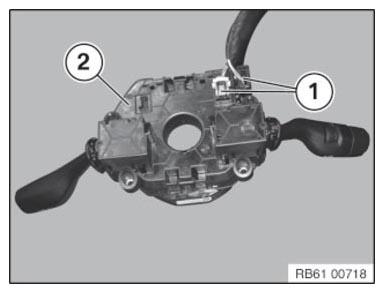

Unlock and disconnect plug connections (1) at the steering column switch cluster (SZL) (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
