Removing the left and right A-pillar trim panel
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the A-pillar trim panel
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Damage to the head airbag.
Improper use of a tool when removing the trim panel may damage the head airbag.
Damage to the head airbag.
Improper use of a tool when removing the trim panel may damage the head airbag.
- Do not use sharp-edged tools when removing the trim panel.

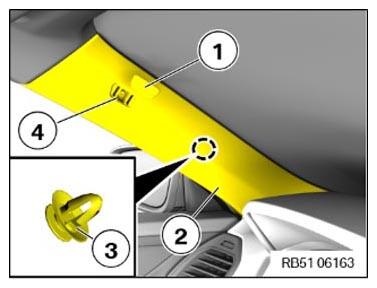

- Unclip the cover (1).
- Loosen screw (4).
- Unclip the A-pillar trim panel (2) from the clip (3) and feed out towards the top.
