Removing the Head Unit High (HU-H) (with holder)

NOTE: RISK OF DAMAGE
Damage to the head unit.
The hard disk of the head unit can be damaged by vibrations.

• Carry out mechanical work on the head unit and adjacent components with care.

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

• Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
• Read and comply with user information on using the associated special tool 12 7 060.
• Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
• Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
• For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

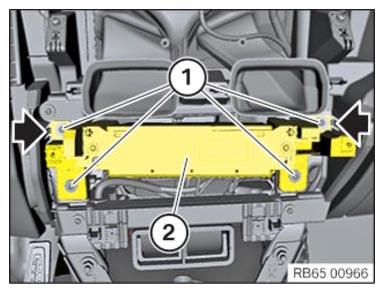

• Loosen screws (1).
• Unlock the locks (arrows).
• Feed out the head unit with holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

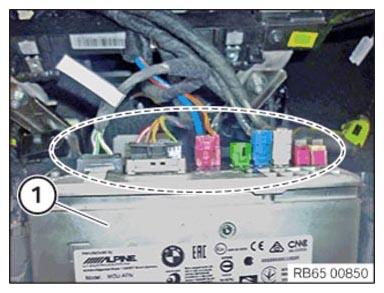

• Unlock and disconnect all the plug connections in the marked area in the correct order.
• Remove the head unit (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the head unit.
The hard disk of the head unit can be damaged by vibrations.

• Carry out mechanical work on the head unit and adjacent components with care.

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

• Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
• Read and comply with user information on using the associated special tool 12 7 060.
• Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
• Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
• For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

• Loosen screws (1).
• Unlock the locks (arrows).
• Feed out the head unit with holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect all the plug connections in the marked area in the correct order.
• Remove the head unit (1).

Courtesy of BMW OF NORTH AMERICA, INC.
