Remove center armrest
Preliminary work
- Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT .

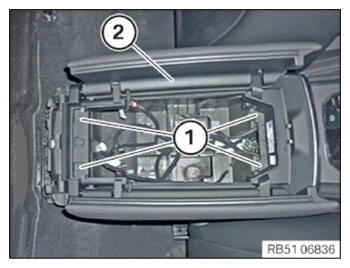

- Loosen screws (1) .
- Lift the center armrest (2)
upwards from the center console.
Unlock and disconnect any plug connectors.
