Removing steering column shroud upper section

NOTE: Perform the steps on the right and left side.
NOTE: TECHNICAL INFORMATION

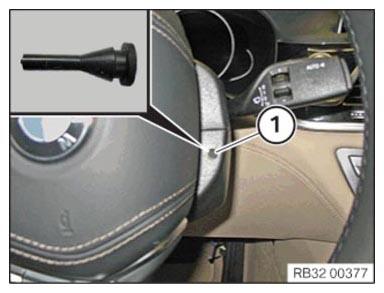

The rubber plugs are reusable. Process to reuse the rubber plugs: remove the steering column shroud lower section and remove the rubber plugs.
G16413451Courtesy of BMW OF NORTH AMERICA, INC.

Standard tools:

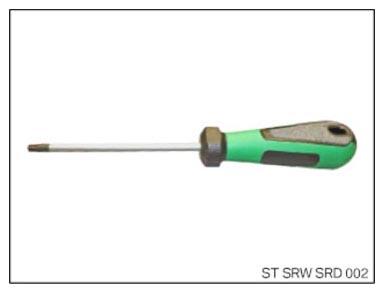

Screwdriver for Torx socket T15

Screwdriver for Torx socket T15

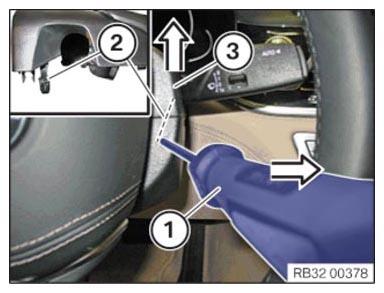

G16413452Courtesy of BMW OF NORTH AMERICA, INC.

Screwdriver for Torx socket T15

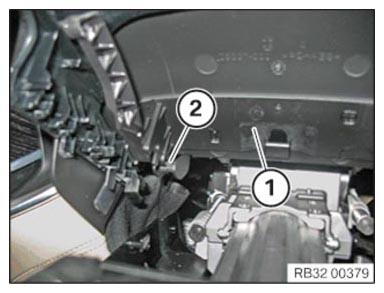

G16413455Courtesy of BMW OF NORTH AMERICA, INC.
