Installing the rear center console trim

Installing the rear center console trim

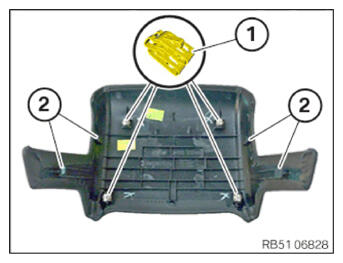

• Check whether the clamps (1)  are present and have damage.

  Damaged or missing clamps (1)  must be replaced.

• Check the guides (2)  for damage, replace the rear center console trim if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

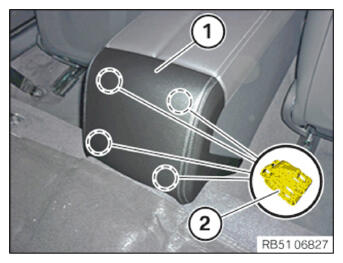

• Correctly position the center console trim (1)  and clip into the clamps (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the rear seat

• Guide in seat belt buckles (3)  , position rear seat (1)  and clip it into clamps (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.
