Removing steering column shroud lower section

NOTE: Perform the steps on the right and left side.

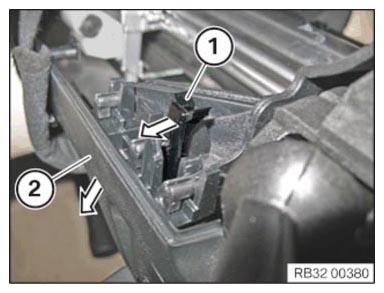

• Push retaining lug (1) to the outside and unclip the lower part of the steering column shroud (2) downwards.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tilt steering column shroud lower section in downward direction.

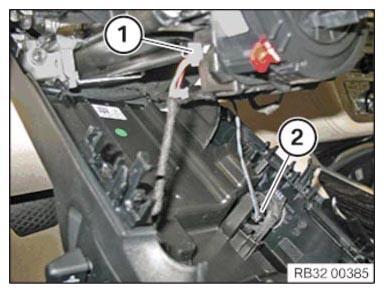

• Unlock and disconnect the plug connections (1) and (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

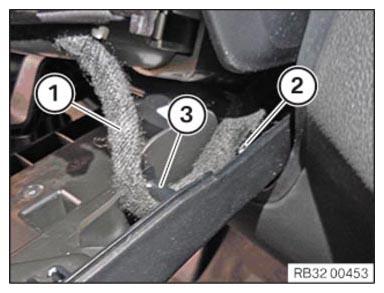

• Remove the line (1) from the holder (2).
• Feed the line (1) out of the guide (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

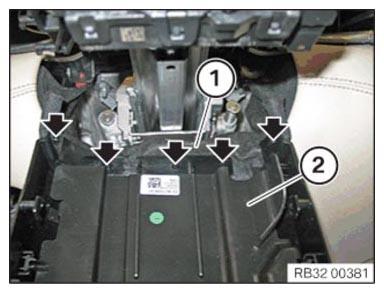

• Unclip the gap cover (1) from the steering column shroud lower section (2) (arrows) and remove the steering column shroud lower section (2).

Courtesy of BMW OF NORTH AMERICA, INC.
