Remove the decorative strip from the left and right dashboard

NOTE: Procedure shows left component only. Procedure on the right side is identical.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

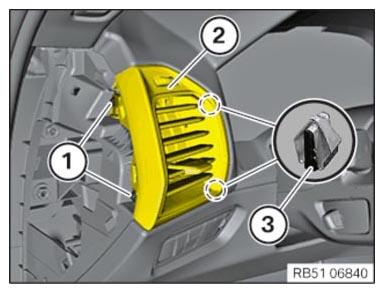

• Position decorative strip (2).
• Connect and lock the present connectors.
• Engage the decorative strip (2) on the clamps (3).
• Tighten the screws (1) on the decorative strip (2) at side.

TIGHTENING TORQUE SPECIFICATION

Decorative strip on the dashboard
Screw	tightening torque	1.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
