Remove/install right cylinder head - AR01.30-P-5780EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 272, 273 in MODEL 212

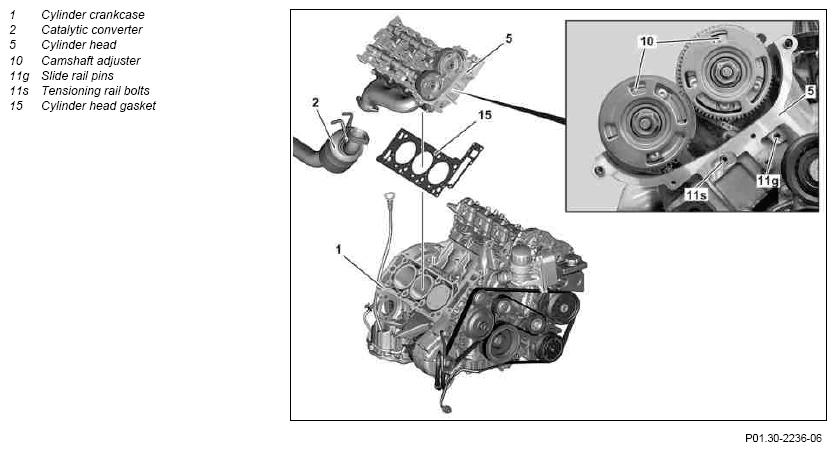

Fig 1: Right Cylinder Head Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Right Cylinder Head Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

8.2.11	Value changed: screw/bolt, cylinder head to timing case		*BA01.30-P-1003-01O
	Value changed: screw/bolt, cylinder head to crankcase		*BA01.30-P-1016-01O

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Turn key in ignition lock to position "0"
2	Detach ground line from battery		AR54.10-P-0003EW
	Notes on battery		AH54.10-P-0001-01A
3	Remove bottom engine compartment paneling	Only install bottom engine compartment paneling after leak test.	AR61.20-P-1105EW
4	Drain coolant at radiator and at cylinder crankcase (1)		AR20.00-P-1142EWS
	Notes on coolant		AH20.00-N-2080-01A
5	Detach right catalytic converter (2) from exhaust manifold		*BA49.10-P-1001-01AE
6	Remove air filter housing		AR09.10-P-1150EWS
7	Remove ME-SFI [ME] control unit (N3/10)	Except model 212.057	AR07.08-P-7008EW
7	Remove ME-SFI [ME] control unit (N3/10)	Model 212.057	AR07.08-P-7008EWD
8	Remove resonance intake manifold (3)	Except model 212.057	AR09.20-P-1961EW
8	Remove resonance intake manifold (3)	Model 212.057	AR09.20-P-1961EWD
9	Remove air shutoff valve (4) at right cylinder head (5)	Except 212.057	AR14.30-P-7200EW
10	Remove front cover (6) at right cylinder head (5)	After fitting front cover (6) check position of camshafts is at a 55° crankshaft angle before ignition TDC:	AR01.30-P-5700EWR
		See "Check basic position of camshafts".	AR05.20-P-6010EW
			Fig 3
11	Remove ignition coil on right cylinder head (5)		AR15.12-P-2003EW
12	Remove right cylinder head cover (7)	Except model 212.057	AR01.20-P-5012EL
12	Remove right cylinder head cover (7)	Model 212.057	AR01.20-P-5012ELD
13	Remove poly-V belt (8) and upper guide pulley (9)		AR13.20-P-0001EWS
14	Remove alternator (G2)		AR15.40-P-5032EW
15	Rotate engine at crankshaft center bolt in direction of engine rotation to a 40° crankshaft angle after ignition TDC	Pay attention to position of camshafts.	AR05.20-P-6010-01VB
15			Fig 3
16	Remove chain tensioner	The previously installed chain tensioner must not be reinstalled because, during removal, its pressure pin is pressed into the end position. The thrust pin latch prevents this return stroke. This would overstretch the timing chain on reinstalling.	AR05.10-P-7800EW
17	Remove both camshaft adjusters (10) at right cylinder head (5)	Intake camshaft	AR05.20-P-7201EWE
17		Exhaust camshaft	AR05.20-P-7201EWA
18	Remove slide rail bolts (11g) and tensioning rail bolts (11s) from right cylinder head (5)		AR01.30-P-5800-04V
			Figure
			Figure
		Coat slide rail bolts (11g) and tensioning rail bolts (11s) before inserting them with sealant.
			Figure
		Loctite 5970 sealant	*BR00.45-Z-1013-01A
19	Remove electrical air pump (M33) with bracket	Except model 212.057	AR14.30-P-7251EW
20	Detach oil dipstick guide tube (12) from right cylinder head (5)	check that seal for the oil dipstick guide tube (12) is correctly seated in the oil pan.	*BA01.45-P-1006-01M
21	Loosen cylinder head bolts in stages in reverse order of tightening procedure and remove them	To avoid stresses in cylinder head (5), cylinder head bolts must only be loosened when engine has cooled off:
		Tightening procedure for cylinder head bolts: Engine 272	AR01.30-P-5800-07VA
		Engine 273 The cylinder head bolt (13) cannot be removed. To be able to handle cylinder head (5) more easily, raise cylinder head bolt (13) and fix it with a cable tie (14).	AR01.30-P-5800-07SX
			*BA01.30-P-1003-01O
			*BA01.30-P-1016-01O
22	Remove RH cylinder head (5) from cylinder crankcase (1)	Place new cylinder head gasket (15) on cylinder crankcase (1). Pay attention to fitted sleeves for fixing cylinder head (5). Before fitting, insert cylinder head bolt (13) into cylinder head (5), and fix it with a cable tie (14).
	Information on applying sealant to cylinder head gasket		AH01.30-P-1000-04RX
	Clean
23	Clean sealing surfaces at RH cylinder head (5), cylinder crankcase (1) and timing case cover	Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces. Blow out threaded holes of cylinder head bolts in cylinder crankcase (1) with compressed air and clean off engine oil and coolant.	AR01.00-P-0050-01A
		Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 cleaning spray (150 ml)	*BR00.45-Z-1046-04A
	Checking
24	Check cylinder head bolts and replace if required		AR01.30-P-5800-03VA
		Cylinder head bolt	*BE01.30-P-1001-04B
25	Check the sealing surfaces at RH cylinder head (5), cylinder crankcase (1) and timing case cover for cracks and unevenness	The cylinder head (5) and cylinder crankcase (1) must not be post-worked (surface grinding). The permissible machining tolerances will be exceeded otherwise. In the event of any complaint, replace cylinder head (5), timing case cover or cylinder crankcase (1). Any distortion of the cylinder head (5) occurring in the longitudinal or transverse direction will be balanced out again during reassembly through tightening of the cylinder head bolts.
26	Install in the reverse order
27	Change engine oil and oil filter element
	Engine oil and filter change		AP18.00-P-0101EW
	Checking
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
28	Carry out an engine test run, and check engine and fuel system for leaks
29	Inspect cooling system for leaks		AR20.00-P-1010EW

CYLINDER HEAD/CYLINDER HEAD BOLTS

Number	Designation			Engine 272	Engine 273
BE01.30-P-1001-04B	Cylinder head bolt	Thread diameter	M	11	11
		Length (L) when new	mm	170	170
		Length (L)	mm	172	172
		See picture		-	-

EXHAUST SYSTEM

Number	Designation		Engine 156, 157, 271, 272, 273, 276, 278 in model 212
BA49.10-P-1001-01AE	Screw/bolt, catalytic converter to exhaust manifold	Nm	20

OIL PAN

Number	Designation		Engine 272	Engine 273
BA01.45-P-1006-01M	Mounting bolt for oil dipstick guide tube	Nm	9	9

CYLINDER HEAD

Number	Designation				Engine 272	Engine 273
BA01.30-P-1003-01O	Cylinder head bolt on timing case	M8		Nm	20	20
BA01.30-P-1016-01O	Screw/bolt, cylinder head to crankcase	M11	Stage 1	Nm	20	20
			Stage 2	Nm	50	50
			Stage 3	∠°	90	90
			Stage 4	∠°	90	90

Fig 3: Identifying Wrench Socket (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Impact Extractor (116 589 20 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Threaded Stud (116 589 01 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Squeeze Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Loctite 5970 sealant	A 003 989 98 20
BR00.45-Z-1038-04A	Loctite 7200	Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A	Loctite 7063 cleaning spray (150 ml)	A 001 986 71 71 10
