Remove/install alternator - AR15.40-P-5032EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 272, 273 in MODEL 212
MODIFICATION NOTES
| 9.9.09 | "Remove fan unit" added | Step 2 |
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Detach ground line from battery | AR54.10-P-0003EW | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove fan unit | Engine 273 | AR20.40-P-5050EW |
| 3 | Remove poly-V belt | AR13.20-P-0001EWS | |
| 4 | Detach front and middle part of engine compartment paneling | AR61.20-P-1105EW | |
| 5 | Remove bolt for power steering pressure line from holder on alternator (G2) | ||

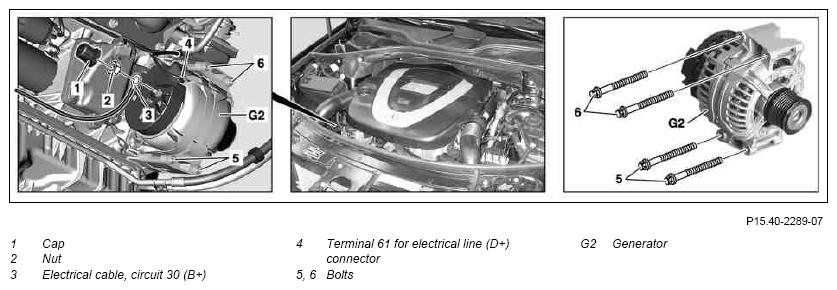

| 6 | Remove bolts (5, 6) from alternator (G2) | *BA15.40-P-1001-01F | |
| 7 | Detach cap (1), Unscrew nut (2) and remove electrical line (3) from alternator (G2) | *BA15.40-P-1002-01F | |
| 8 | Unplug plug (4) from alternator (G2) | ||
| 9 | Take alternator (G2) down and out | ||
| 10 | Install in the reverse order |
ALTERNATOR
| Number | Designation | ENGINE 272 | ENGINE 273 | |
|---|---|---|---|---|
| BA15.40-P-1001-01F | Bolt, alternator to timing case | Nm | 20 | 20 |
| BA15.40-P-1002-01F | Nut of circuit B+ to alternator | Nm | 15 | 15 |
