Remove/install resonance intake manifold - AR09.20-P-1961EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 (except 272.983) in MODEL 212

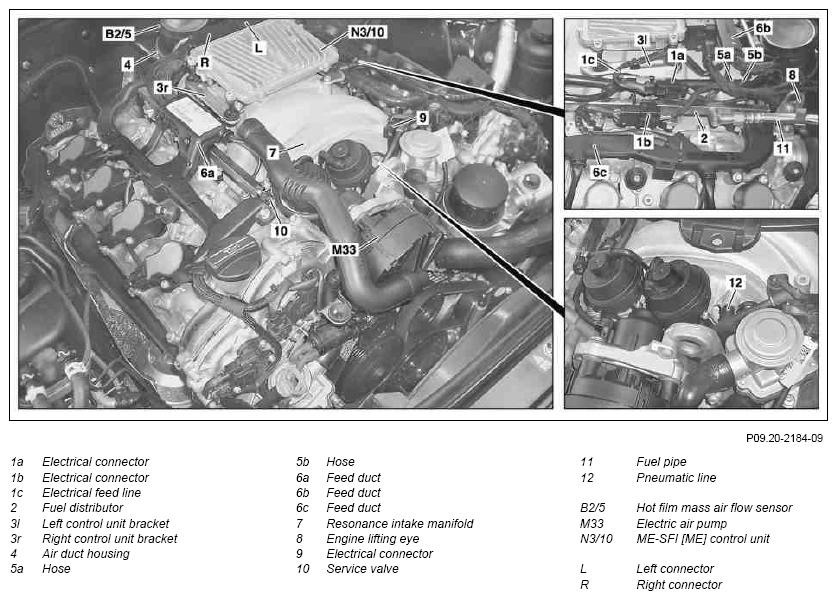

Fig 1: Identifying Resonance Intake Manifold Remove/Install Components (1 Of 2)
G09974861Courtesy of MERCEDES-BENZ USA

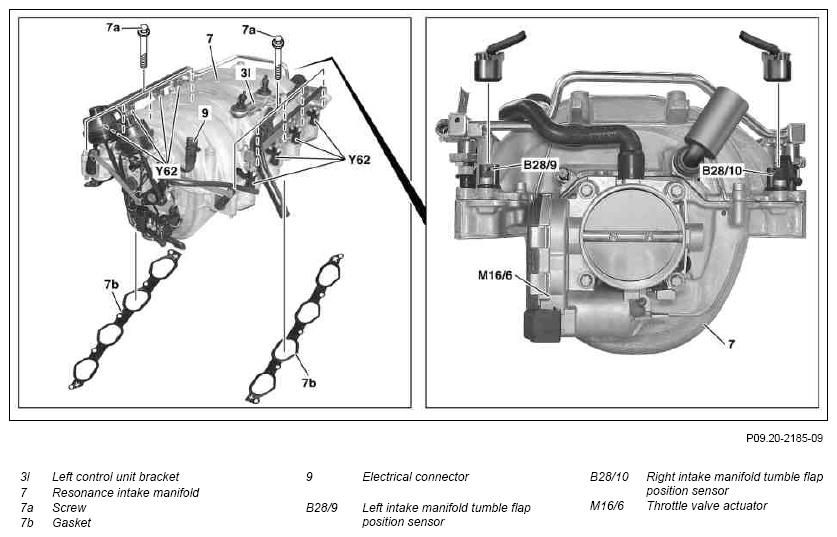

Fig 2: Identifying Resonance Intake Manifold Remove/Install Components (2 Of 2)
G09974862Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
NOTES Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
1 Remove air filter housing   AR09.10-P-1150EWS
2 Disconnect right connector (R) at ME-SFI [ME] control unit (N3/10)
3 Disconnect electrical connectors (1a, 1b)
4 Remove jack for electrical connector (1b) on fuel distributor (2)
5 Remove electrical feed line (1c) from left control unit bracket (3l)
6 Pull ME-SFI [ME] control unit (N3/10) out of control unit brackets (3l, 3r) and place down to one side IMPORTANT Do not  disconnect left connector (L) at ME-SFI [ME] control unit (N3/10).
7 Remove hot film mass air flow sensor (B2/5)   AR07.07-P-1453EW
8 Remove air duct housing (4)   AR09.20-P-0080EW
9 Disconnect hoses (5a, 5b) from crankcase ventilation system
10 Remove right control unit bracket (3r) TORQUE SPECIFICATION *BA07.08-P-1002-01A
11 Detach supply ducts (6a, 6b, 6c) from cylinder head cover, resonance intake manifold (7) and rear right engine suspension lug (8) TORQUE SPECIFICATION *BA15.18-P-1001-01B
    TORQUE SPECIFICATION *BA15.18-P-1002-01B
    TORQUE SPECIFICATION *BA15.18-P-1003-01B
12 Disconnect electrical connectors on injection valves and position sensors (B28/9, B28/10)
13 Disconnect electrical connector (9)
14 Disconnect electrical connectors on throttle valve actuator (M16/6) and electric air pump (M33)
15 Release fuel pressure over service valve (10)   AR07.03-P-1460-01VA
    SPECIAL TOOL Figure
    TORQUE SPECIFICATION Engine 272 *BA07.03-P-1004-01B
16 Disconnect fuel line (11) from fuel distributor (2) IMPORTANT Seal connections immediately.
    SPECIAL TOOL Fig 3
    TORQUE SPECIFICATION *BA07.03-P-1001-01B
17 Remove bolts (7a) TORQUE SPECIFICATION *BA09.20-P-1001-01N
18 Lift resonance intake manifold (7) to front and take out pneumatic lines (12) from connection fittings at the resonance intake manifold (7) INSTALLATION IMPORTANT Replace seals (7b).
19 Cover openings in cylinder heads
20 Remove left control unit holder (3l), fuel distributor (2) with injection valves (), throttle valve actuators (M16/6) and position sensors (B28/9, B28/10) from resonance intake manifold (7) When replacing the resonance intake manifold (7)
    TORQUE SPECIFICATION *BA07.08-P-1002-01A
    TORQUE SPECIFICATION *BA07.03-P-1002-01B
    TORQUE SPECIFICATION *BA07.61-P-1001-01D
    TORQUE SPECIFICATION *BA09.20-P-1002-01N
21 Install in the reverse order
INSPECT Checking
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
22 Carry out an engine test run and check intake tract and fuel system for leaks
INTAKE MANIFOLD

Number Designation Engine 272 Engine 273
BA09.20-P-1002-01N Bolt, tumble flap position sensor to resonance intake manifold Nm 6 6
CONTROL UNIT

Number Designation Engine 272 Engine 273
BA07.08-P-1002-01A Bolt, control unit bracket to resonance intake manifold Nm 8 8
ENGINE WIRING HARNESS

Number Designation Engine 272 Engine 273
BA15.18-P-1001-01B Bolt, feed duct to resonance intake manifold Nm 8 8
BA15.18-P-1002-01B Bolt, feed duct to cylinder head cover Nm 8 8
BA15.18-P-1003-01B Bolt, feed duct to engine lifting eye Nm 8 8
INJECTORS, INJECTION VALVES, LINES

Number Designation Engine 272 Engine 273
BA07.03-P-1001-01B Union nut, fuel line to fuel distributor Nm 20 20
BA07.03-P-1002-01B Bolt, fuel distributor to resonance intake manifold Nm 9 9
BA07.03-P-1004-01B Protective cap on service valve Plastic Nm 2 -
Metal Nm 15 -
INTAKE MANIFOLD

Number Designation Engine 272 Engine 273
BA09.20-P-1001-01N Bolt, resonance intake manifold to cylinder head Nm 9 9
ME-SFI [ME] GASOLINE INJECTION AND IGNITION SYSTEM

Number Designation Engine 272 Engine 273
BA07.61-P-1001-01D Bolt, throttle valve actuator to resonance intake manifold Nm 9 9
Fig 3: Identifying Set Of Stop Plugs (129 589 00 91 00)
G09974863Courtesy of MERCEDES-BENZ USA
