Remove/install air shutoff valve - AR14.30-P-7200EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 272, 273 (except 272.983) in MODEL 212
| Remove/install | |||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||

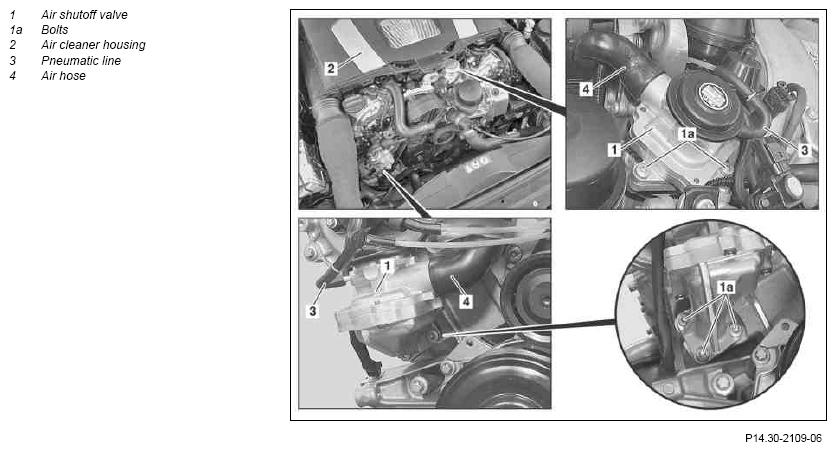

| 1.1 | Remove front engine cover | When removing air shutoff valve (1) at right cylinder head | AR09.10-P-1150EWS |
| 1.2 | Remove air filter housing (2). | When removing air shutoff valve (1) at left cylinder head | AR09.10-P-1150EWS |
| 2 | Detach pneumatic line (3) and air hose (4) from air shutoff valve (1) | ||
| 3 | Remove bolts (1a) and remove air shutoff valve (1) | *BA14.30-P-1003-02A | |
| *BA14.30-P-1004-02A | |||
| 4 | Install in the reverse order |
AIR SHUTOFF VALVE
| Number | Designation | Engine 272 | Engine 273 | |
|---|---|---|---|---|
| BA14.30-P-1003-02A | Bolt connecting right air shutoff valve to cylinder head | Nm | 14 | 14 |
| BA14.30-P-1004-02A | Bolt, left air shutoff valve intermediate flange to cylinder head | Nm | 14 | 14 |
