Pull out guide rail pins at cylinder head - AR01.30-P-5800-04V

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273

Fig 1: Identifying Impact Extractor (116 589 20 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Threaded Pin (116 589 01 34 00)

Courtesy of MERCEDES-BENZ USA

Left cylinder head

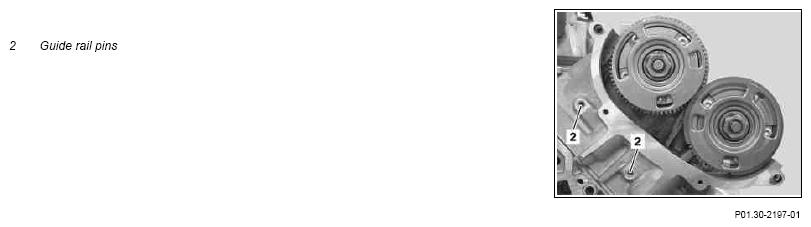

Fig 3: Left Cylinder Head Guide Rail Pins

Courtesy of MERCEDES-BENZ USA

Right cylinder head

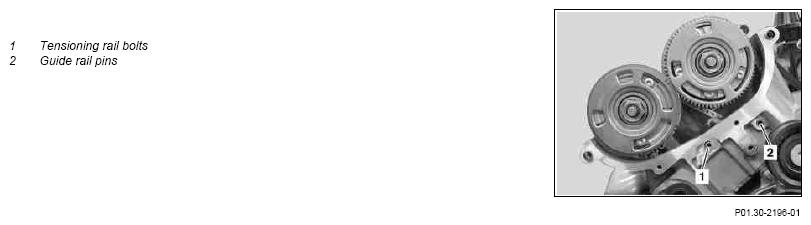

Fig 4: Right Cylinder Head Guide Rail Pins And Tensioning Rail Bolts

Courtesy of MERCEDES-BENZ USA

Shown on tensioning rail bolts

Only extract the tensioning rail bolts (1) using the impact extractor (03) in order to avoid damaging the contact surface on the front cover.

Screw threaded insert (02) into the tensioning rail bolts (1) and extract the tensioning rail bolts (1) using an impact extractor (03).
The guide rail pins (2) are like tensioning rail bolts (1).

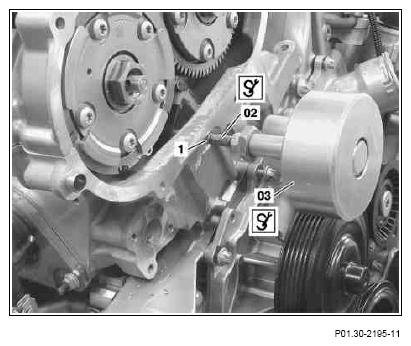

Fig 5: Threaded Insert And Guide Rail Pins
Courtesy of MERCEDES-BENZ USA
