Remove/install bottom engine compartment paneling - AR61.20-P-1105EW

MODEL 204.0/2 with ENGINE 156, 271, 272, 274, 276

MODEL 204.3 with ENGINE 156, 271, 274, 276

MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278

MODEL 212 with ENGINE 156, 157, 271, 272, 273, 274, 276, 278

MODEL 218 with ENGINE 157, 274, 276, 278

Shown on model 212 with engine 274

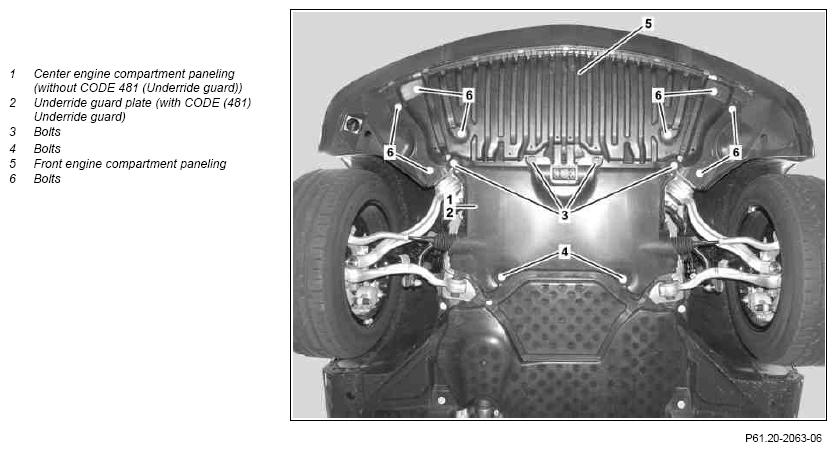

Fig 1: Engine Compartment Paneling Remove/Install Components - Shown On Model 212 With Engine 274

Courtesy of MERCEDES-BENZ USA

Shown on model 212 with engine 273

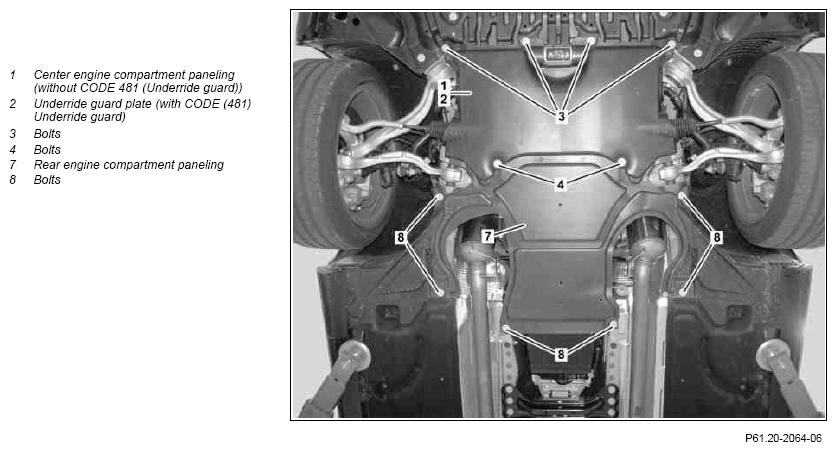

Fig 2: Engine Compartment Paneling Remove/Install Components - Shown On Model 212 With Engine 273

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with vehicle lift
2	Loosen screws/bolts (3)	MODEL 204.0/2 with ENGINE 156, 271, 272, 274, 276 with CODE 481 (Sump shield) MODEL 204.3 with ENGINE 156, 271, 274, 276 with CODE 481 (Sump shield) MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278 with CODE 481 (Sump shield) MODEL 212 with ENGINE 156, 157, 271, 272, 273, 274, 276, 278 with CODE 481 (Sump shield) MODEL 218 with ENGINE 157, 274, 276, 278 with CODE 481 (Sump shield) If the rear engine compartment paneling (7) is removed separately.
		MODEL 212 with ENGINE 156, 157, 271, 272, 273, 274, 276, 278 with CODE 481 (Sump shield)	*BA61.40-P-1003-01A
		MODEL 204.0/2 with ENGINE 156, 271, 272, 274, 276 with CODE 430 (Offroad package) with CODE 481 (Sump shield) MODEL 204.3 with ENGINE 156, 271, 274, 276 with CODE 430 (Offroad package) with CODE 481 (Sump shield) MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278 with CODE 481 (Sump shield) MODEL 218 with ENGINE 157, 274, 276, 278 with CODE 481 (Sump shield) Rechargeable screwdriver, rechargeable drill	*BA61.40-P-1001-01D
3.1	Unscrew bolts (3, 4) and remove center engine compartment paneling (1)	MODEL 204.0/2 with ENGINE 156, 271, 272, 274, 276 without CODE 481 (Sump shield) MODEL 204.3 with ENGINE 156, 271, 274, 276 without CODE 481 (Sump shield) MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278 without CODE 481 (Sump shield) MODEL 212 with ENGINE 156, 157, 271, 272, 273, 274, 276, 278 without CODE 481 (Sump shield) MODEL 218 with ENGINE 157, 274, 276, 278 without CODE 481 (Sump shield) Rechargeable screwdriver, rechargeable drill
3.2	Unscrew bolts (3, 4) and remove underride guard plate (2)	MODEL 204.0/2 with ENGINE 156, 271, 272, 274, 276 with CODE 481 (Sump shield) MODEL 204.3 with ENGINE 156, 271, 274, 276 with CODE 481 (Sump shield) MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278 with CODE 481 (Sump shield) MODEL 212 with ENGINE 156, 157, 271, 272, 273, 274, 276, 278 with CODE 481 (Sump shield) MODEL 218 with ENGINE 157, 274, 276, 278 with CODE 481 (Sump shield)
		MODEL 212 with ENGINE 156, 157, 271, 272, 273, 274, 276, 278 with CODE 481 (Sump shield)	*BA61.40-P-1003-01A
		MODEL 204.0/2 with ENGINE 156, 271, 272, 274, 276 with CODE 430 (Offroad package) with CODE 481 (Sump shield) MODEL 204.3 with ENGINE 156, 271, 274, 276 with CODE 430 (Offroad package) with CODE 481 (Sump shield) MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278 with CODE 481 (Sump shield) MODEL 218 with ENGINE 157, 274, 276, 278 with CODE 481 (Sump shield) Rechargeable screwdriver, rechargeable drill	*BA61.40-P-1001-01D
4	Unscrew bolts (6) and remove front engine compartment paneling (5)	MODEL 218 with ENGINE 157, 274, 276, 278 The front engine compartment paneling (5) is fastened to the bumper with an additional bolt (6). Rechargeable screwdriver, rechargeable drill
5	Unscrew bolts (8) and remove rear engine compartment paneling (7)	Rechargeable screwdriver, rechargeable drill
6	Install in the reverse order
