Retrofit Communication And Navigation System (CNS) With Digital Radio (DAB) - AZ82.85-S-0012E

Model 447.6

with code ER0 (Radio, pre-wiring)

except code EN6 (Audio 10)

except code EN7 (Audio 15)

except code ME0 (Electric motor 85 kW)

except code XM0 (Facelift)

Model 447.7

with code ER0 (Radio, pre-wiring)

except code EN6 (Audio 10)

except code EN7 (Audio 15)

except code ME0 (Electric motor 85 kW)

except code ME4 (Electric motor 145 kW)

except code XM0 (Facelift)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove
1	Detach ground line of on-board electrical system battery.
			AR54.10-S-0003E

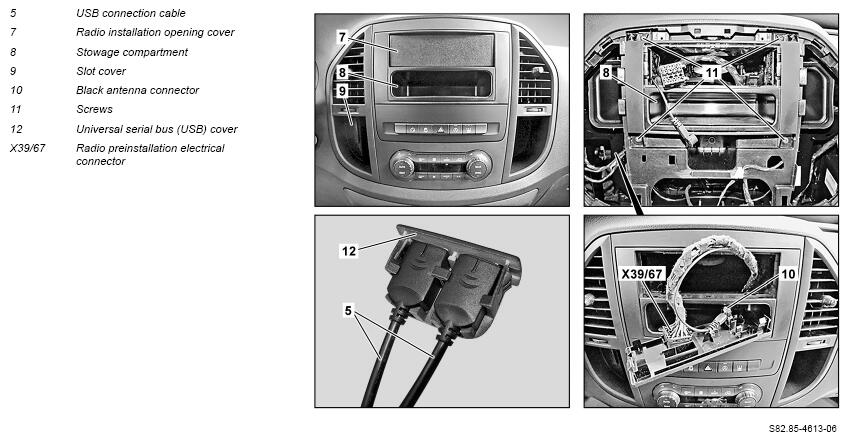

2	Remove radio installation opening cover (7).	To do so, detach the radio pre-installation electrical connector (X39/67) and black antenna connector (10) from the radio installation opening cover (7). The removed radio installation opening cover (7) is no longer required and must be handed over to the customer.
		Long wedge	Fig 1
3	Remove center instrument panel cover.
		Model 447.6/7 except code XM7 (Facelift II)	AR68.10-S-3430E
4	Remove cover for slot (9) from cover of center instrument panel.	The slot cover (9) is no longer required and must be handed over to the customer.
5	Remove storage compartment (8) from instrument panel.	To do this, remove screws (11). The screws (11) of the removed storage compartment (8) are used for securing the CNS head unit (1). The storage compartment (8) is no longer required and must be handed over to the customer.
6	Detach center instrument panel speaker (H4/27).
		Do not disconnect electrical wiring plugs.	AR82.62-S-7833E
7	Remove cover under left instrument panel.
		Model 447.6/7 with code LC7 (Front footwell illumination)	AR68.10-S-1500E
8	Remove right A-pillar trim.
			AR68.30-S-4050E
9.1	Remove front overhead control panel (OCP) control unit (N70).	MODEL 447.6/7 with CODE LC4 (Comfort overhead control panel) MODEL 447.6/7 with CODE LD0 (Overhead control panel with two reading spots)
			AR82.20-S-1100E
9.2	Remove front dome lamp.	MODEL 447.6/7 except CODE LC4 (Comfort overhead control panel) except CODE LD0 (Overhead control panel with two reading spots)
			AR82.20-S-0110E
	Install
10.1	Retrofit supplied antenna module for CNS head unit (1).	Model 447.6/7 with code JF1 (Rain sensor)
			AZ82.85-S-0012-01E
10.2	Retrofit supplied digital radio (DAB) antenna for CNS head unit (1).	Model 447.6/7 except code JF1 (Rain sensor)
			AZ82.85-S-0012-02E
11	Retrofit hands-free system microphone (4).		AZ82.70-S-0005-08E
12	Retrofit GPS antenna (3).		AZ82.85-S-0012-04E
13	Retrofit CAN cable for CNS head unit (1).
	Location and assignment of line and plug	Model 447 except code XM7 (Facelift II)	GF00.19-S-1000VVA
	Wiring diagram for radio preinstallation	Model 447.6/7 with code ZL3 (National version for Latin America)	PE82.60-S-2851VLA
	Wiring diagram for radio preinstallation	Model 447.6/7 except code ZL3 (National version for Latin America)	PE82.60-S-2851VVA
			AZ82.85-S-0008-06E
		Wiring harness repair kit, basic	Fig 2
14	Install cover under left instrument panel.
		Model 447.6/7 with code LC7 (Front footwell illumination)	AR68.10-S-1500E

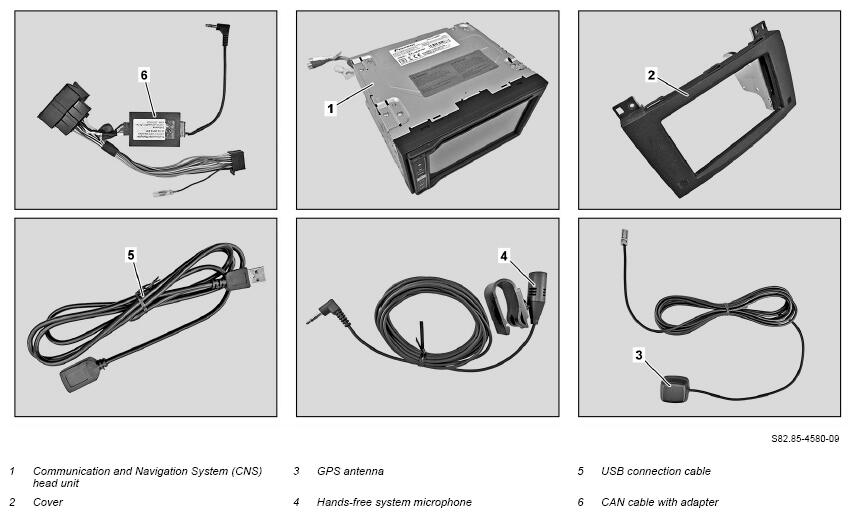

15	Retrofit connecting cables for CNS head unit (1).	The connecting cables for the CNS head unit (1) consist of supplied USB connection cables (5) and USB cover (12).	AZ82.85-S-0008-03E
16	Prepare CNS head unit (1) for installation.	For this purpose, use the CNS head unit (1), cover (2) and supplied screws.	AZ82.85-S-0008-01E
17	Retrofit CAN cable with adapter (6) for CNS head unit (1).	Install the CAN cable with adapter (6) with supplied antenna adapter.	AZ82.85-S-0008-05E
		Wiring harness repair kit, basic	Fig 2
18	Retrofit CNS head unit (1).		AZ82.85-S-0008-02E
19	Attach ground line of on-board electrical system battery.
			AR54.10-S-0003E
20	Subsequently check DAB antenna power supply at CNS head unit (1).		AZ82.85-S-0012-03E
21	Make basic settings on CNS head unit (1).	To do so, operate parking brake. This enables the setting to be made on the CNS head unit (1) in the control menu.
		See Owner's Manual.
22	Install center instrument panel cover.
		Model 447.6/7 except code XM7 (Facelift II)	AR68.10-S-3430E
		Make sure that the USB cover (12) with USB ports is correctly engaged in the installation opening of the center instrument panel cover.
23.1	Install front overhead control panel control unit (OCP).	MODEL 447.6/7 with CODE LC4 (Comfort overhead control panel) MODEL 447.6/7 with CODE LD0 (Overhead control panel with two reading spots)
			AR82.20-S-1100E
23.2	Install front dome lamp.	MODEL 447.6/7 except CODE LC4 (Comfort overhead control panel) except CODE LD0 (Overhead control panel with two reading spots)
			AR82.20-S-0110E
24	Attach center instrument panel speaker.
			AR82.62-S-7833E
25	Install right A-pillar trim.
			AR68.30-S-4050E
26	Enter retrofitted equipment in vehicle documentation system (VeDoc).	Attach note "Communication and Navigation System (CNS) with digital radio (DAB) retrofitted as per AZ82.85-S-0012E" under field organization texts to design group 82.
	Check
27	Perform function test.	See Owner's Manual.

Part no.	Designation	Quantity
	Parts kit (see "ODUS"), Communication and Navigation System (CNS) with digital radio (DAB)	1
