Retrofit CAN Cable With Adapter For Communication And Navigation System (CNS) - AZ82.85-S-0008-05E
Model 447.6/7
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |
Connection scheme

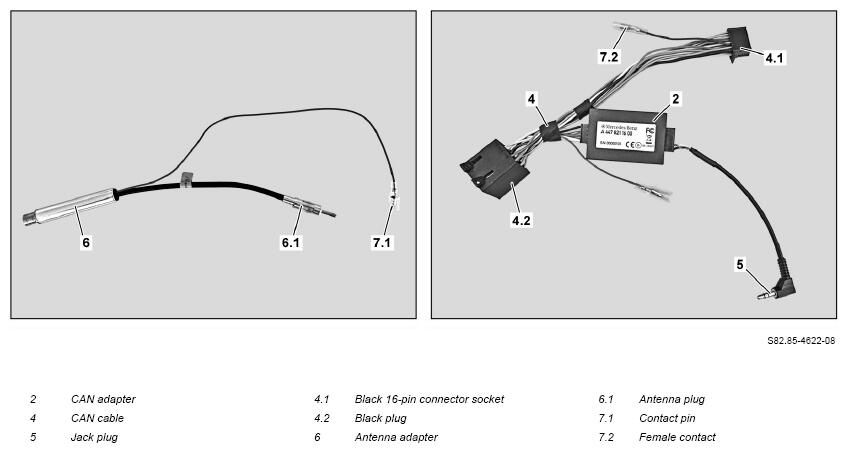

Shown on adapter wiring harness for model 447.7 with code ER0 (Pre-installation for radio)

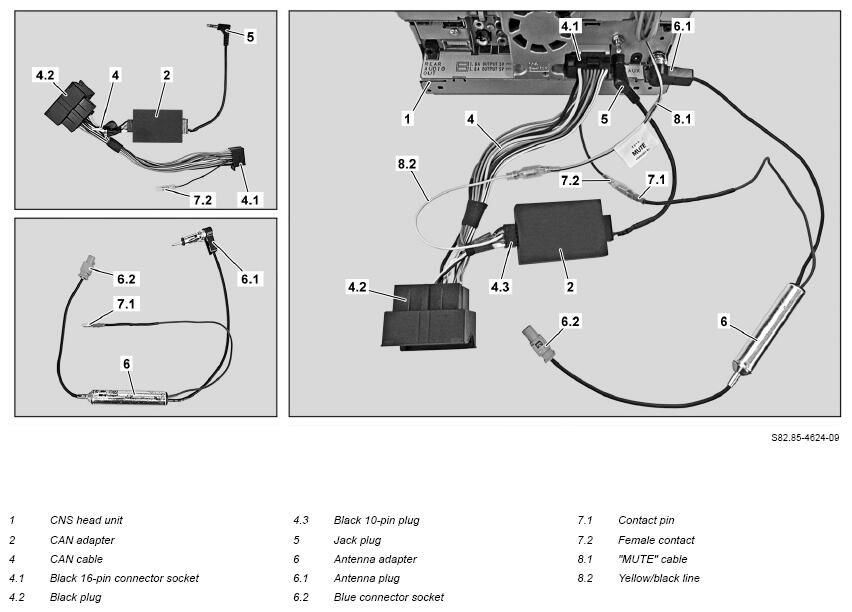

Shown on adapter wiring harness for model 447.7 with code EN7 (Audio 15)
- Stick felt tape onto CAN adapter (2) on upper and lower side as well as at the side.
- Attach black 16-pin connector socket (4.1) of CAN cable (4) to CNS head unit (1).
The black plug (4.2) of the CAN cable (4) is attached to the black plug holder (3.1) of the vehicle wiring harness (3) during installation of the CNS head unit (1).
- Attach jack plug (5) of CAN adapter (2) to CNS head unit (1).
- Attach antenna plug (6.1) of antenna adapter (6) to CNS head unit (1).
Model 447.6/7
with code ER0 (Basic fittings f. radio)
except code EN6 (Audio 10)
except code EN7 (Audio 15)
The antenna adapter (6) is attached to the black antenna coupling of the vehicle wiring harness (3) during installation of the CNS head unit (1).
Model 447.6/7
with code EN6 (Audio 10)
except code ER0 (Basic fittings f. radio)
Model 447.6/7
with code EN7 (Audio 15)
except code ER0 (Basic fittings f. radio)
The blue connector socket (6.2) of the antenna adapter (6) is attached to the black antenna coupling of the vehicle wiring harness (3) during installation of the CNS head unit (1).
- Attach contact pin (7.1) of antenna adapter (6) to contact socket (7.2) of black 16-pin connector socket (4.1).
- Connect "MUTE" cable (8.1) of CNS head unit (1) with yellow/black line (8.2) of black 10 pin plug (4.3).
Use basic wiring harness repair kit.
