Retrofit Antenna Module For Communication And Navigation System (CNS) With Digital Radio (DAB) - AZ82.85-S-0012-01E
Model 447.6/7
with code JF1 (rain sensor)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS |

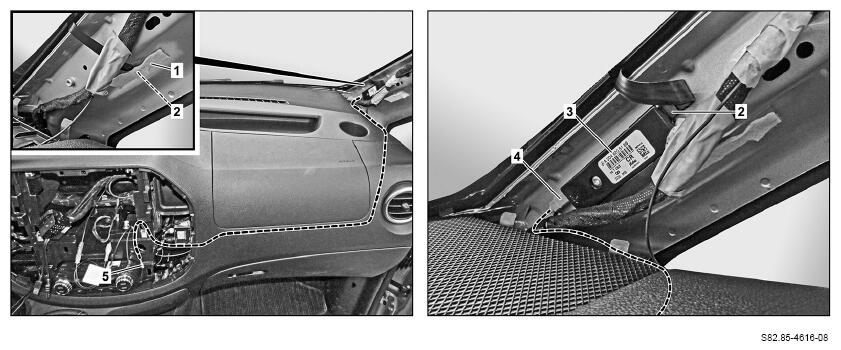

- Loosen tape (1) at right A-pillar and detach electrical plug (2).
- Attach antenna module (3) to right A-pillar and fasten with integrated screw.
- Attach electrical plug (2) to antenna module (3).
- Route electric line for antenna module (3), as shown, from right A-pillar inside the instrument panel up to installation location of the Communication and Navigation Systems (CNS) head unit.
Do not kink electric line and ensure that it is routed without any chafing.
Prevent damage.
- Secure electric line for antenna module (3) section by section using cable ties at factory-installed electrical wiring harness.
- Attach plug holder (4) to antenna module (3).
The connector socket (5) of the electric line for the antenna module (3) is attached during installation of the CNS head unit.
