Remove/Install Front Dome Lamp - AR82.20-S-0110E
Model 447.6/7
Except Code LC4 (Comfort overhead control panel)
Except Code LD0 (Overhead control panel with two reading lights)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

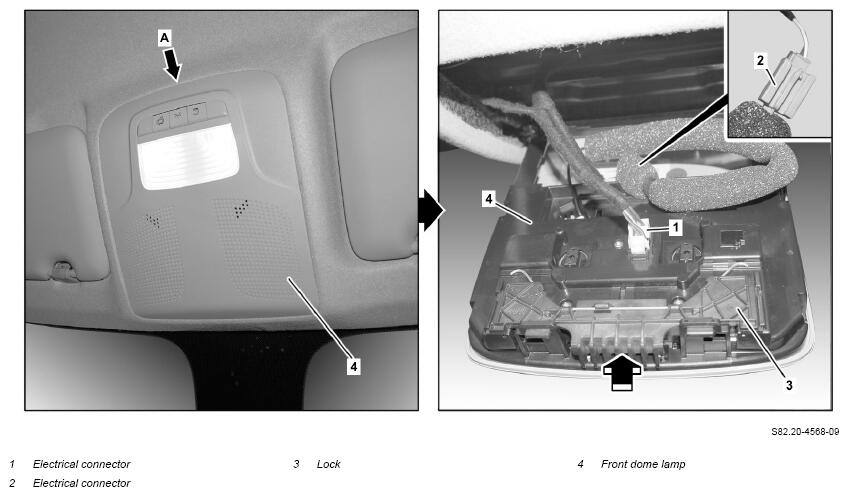

| 1 | Insert long wedge in the rear area (arrow A) of the front dome lamp (4), move lock (3) in direction of arrow, and lower front dome lamp (4) | Fig 1 | |
| 2 | Disconnect electrical connectors (1, 2) | ||
| 3 | Remove front dome lamp (4) from headliner | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Perform function check of front dome lamp (4) |
