Remove/Install Center Instrument Panel Cover - AR68.10-S-3430E
Model 447.6/7, 448.7
Except Code XM7 (MOPF II)
Shown On model 447
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||

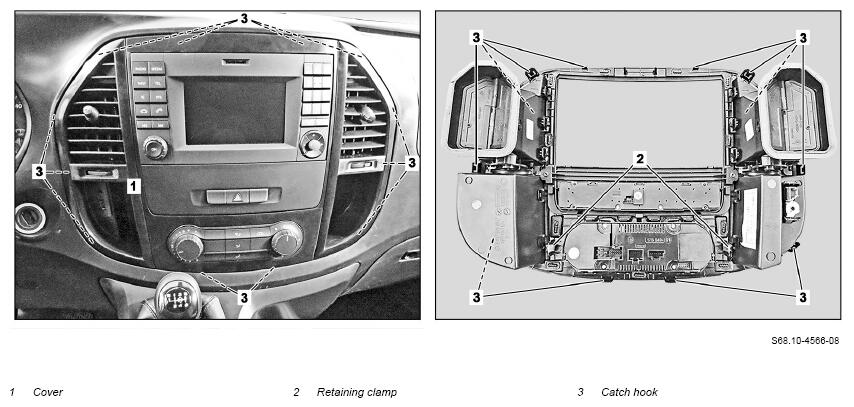

| 1 | Position long wedge between instrument panel and cover (1), release cover (1), and lift up so that electrical connectors are accessible | ||
If retaining clamps (2) are damaged ↓ Replace retaining clamps (2) in question If catch hooks (3) are damaged ↓ Replace cover (1) |
Fig 1 | ||
| 2 | Disconnect all electrical connectors from back of cover (1) and remove cover (1) | ||
| 3 | Remove upper control panel control unit | Only when replacing cover (1). | AR54.21-S-1262EE |
| 4 | Remove air conditioning system control and operating unit | Only when replacing cover (1). | AR83.40-S-6350E |
| 5 | Remove center air vents on both sides | Only when replacing cover (1). Model 447.6/7, 448.7 except code XM7 (MOPF II) |
AR83.10-S-4503EE |
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Perform function test on integrated electronic component parts |
