Exterior Trim Location Index

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

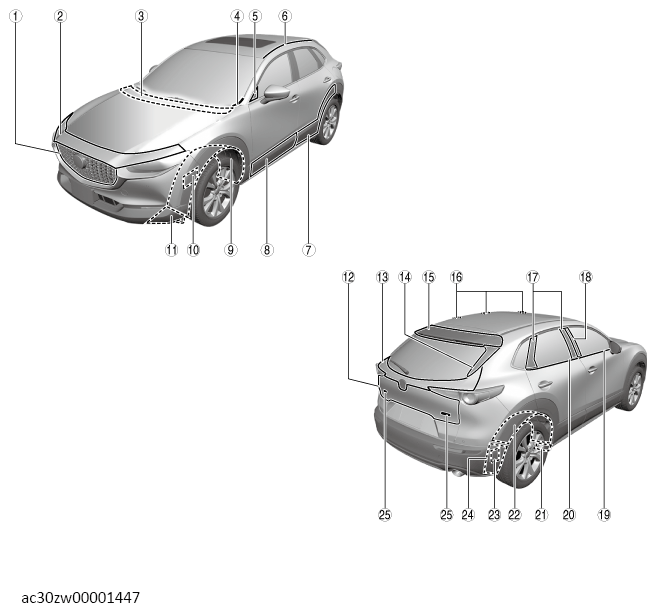

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Radiator grille (See RADIATOR GRILLE REMOVAL/INSTALLATION .) (See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY .)
2	Upper face (See UPPER FACE REMOVAL/INSTALLATION .) (See UPPER FACE DISASSEMBLY/ASSEMBLY .)
3	Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
4	Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
5	Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
6	Roof molding (See ROOF MOLDING REMOVAL .) (See ROOF MOLDING INSTALLATION .)
7	Rear side garnish (See SIDE GARNISH REMOVAL/INSTALLATION .)
8	Front side garnish (See SIDE GARNISH REMOVAL/INSTALLATION .)
9	Front mudguard (See MUDGUARD REMOVAL/INSTALLATION .)
10	Front splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION .)
11	Front deflector (See DEFLECTOR REMOVAL/INSTALLATION .)
12	Rear finisher (See REAR FINISHER REMOVAL/INSTALLATION .)
13	Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)
14	Side spoiler (See SIDE SPOILER REMOVAL/INSTALLATION .)
15	Rear spoiler (See REAR SPOILER REMOVAL .) (See REAR SPOILER INSTALLATION .)
16	Roof carrier bracket (with roof carrier bracket) (See ROOF CARRIER BRACKET REMOVAL/INSTALLATION .)
17	Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
18	Front door garnish (See FRONT DOOR GARNISH REMOVAL/INSTALLATION .)
19	Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION .)
20	Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
21	Rear deflector (See DEFLECTOR REMOVAL/INSTALLATION .)
22	Rear mudguard (See MUDGUARD REMOVAL/INSTALLATION .)
23	Extractor chamber (See EXTRACTOR CHAMBER REMOVAL/INSTALLATION .)
24	Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION .)
25	Emblem (See EMBLEM INSTALLATION .)

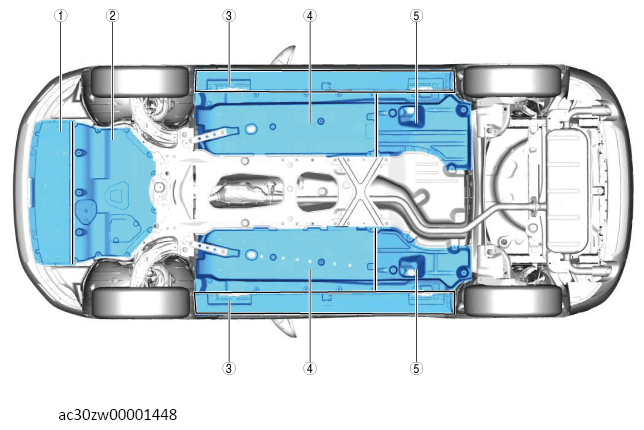

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front under cover No. 1 (See FRONT UNDER COVER NO. 1 REMOVAL/INSTALLATION .)
2	Front under cover No. 2 (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
3	Side step molding (See SIDE STEP MOLDING REMOVAL .) (See SIDE STEP MOLDING INSTALLATION .)
4	Floor under cover No. 1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
5	Floor under cover No. 2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
