Roof Molding Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

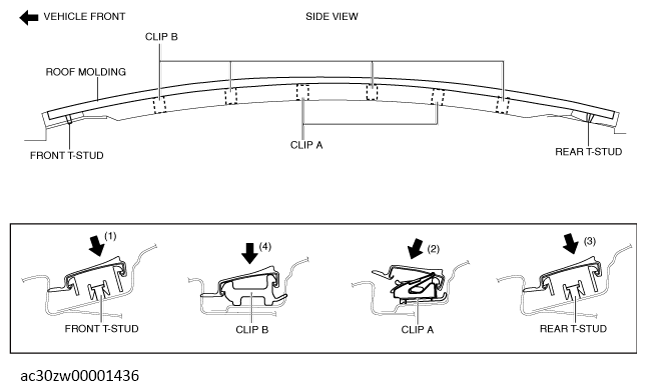

- Press the roof molding in the direction of arrow (1) shown in the illustration and install it to the front T-stud.
- Hook the roof molding to clips A and install it while pressing it in the direction of arrow (2) shown in the illustration.
- Press the roof molding in the direction of arrow (3) shown in the illustration and install it to the rear T-stud.
- Press the roof molding in the direction of arrow (4) shown in the illustration and install clips B to the roof panel.
