FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up the vehicle.
  2. Remove the bolts and fasteners.

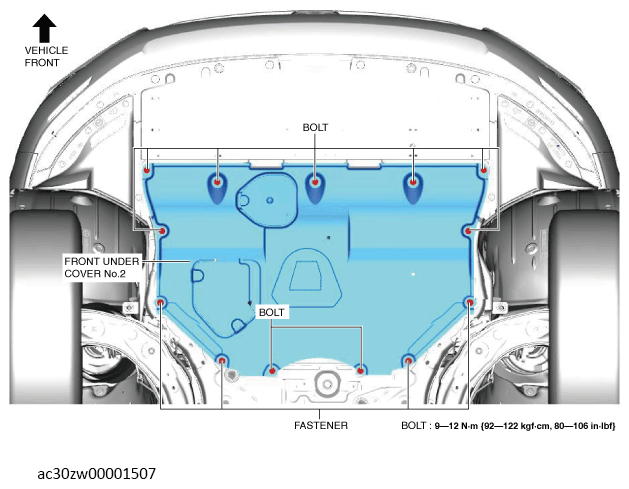

    Fig 1: Front Under Cover No. 2, Fasteners And Bolts With Torque Specification
    G13560536Courtesy of MAZDA MOTORS CORP.
  3. Remove the front under cover No. 2.
  4. Install in the reverse order of removal.
