Roof Molding Removal

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

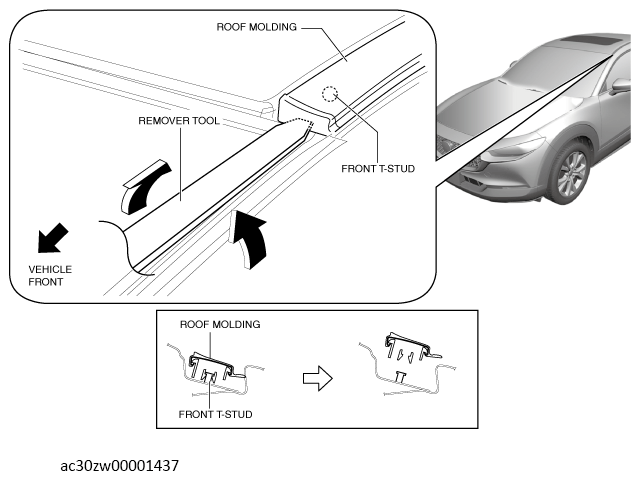

Insert a remover tool into the position shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrows shown in the illustration and detach the roof molding from the front T-stud.
Rotate the roof molding in the direction of the arrows shown in the illustration and remove it starting from the clips at the front of the vehicle.

Courtesy of MAZDA MOTORS CORP.

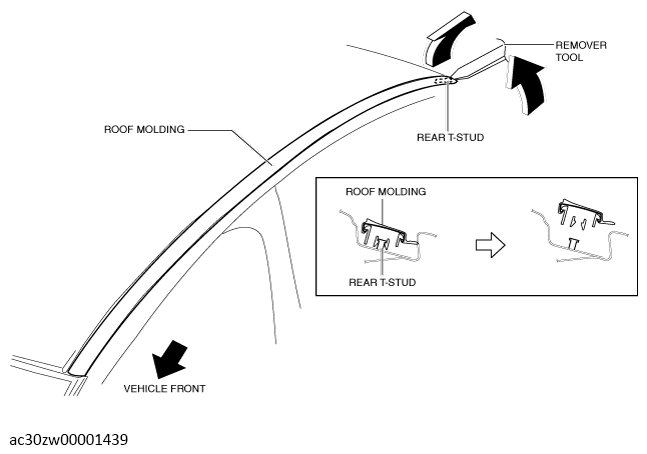

Insert a remover tool in the position shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrows shown in the illustration, detach the roof molding from the rear T-stud, and remove the roof molding.
NOTE:
- When replacing the roof molding, remove the caps. (with cap)
Courtesy of MAZDA MOTORS CORP.
