Rear Spoiler Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

When a rear spoiler is to be reused, perform the following procedure:

If the packing is damaged, remove bolts together with the packing.

Courtesy of MAZDA MOTORS CORP.

Remove any grease and dirt from the packing affixing area.

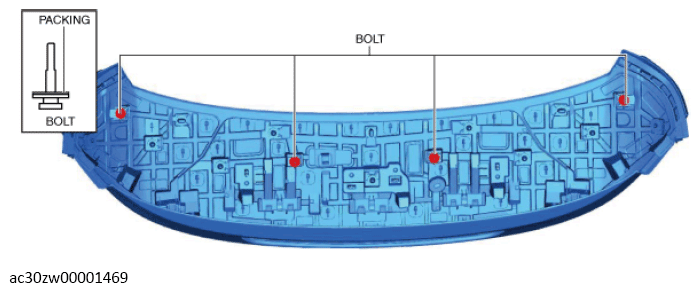

Install new bolts together with the packing.
NOTE:
- Packing has already been attached to the new bolt.

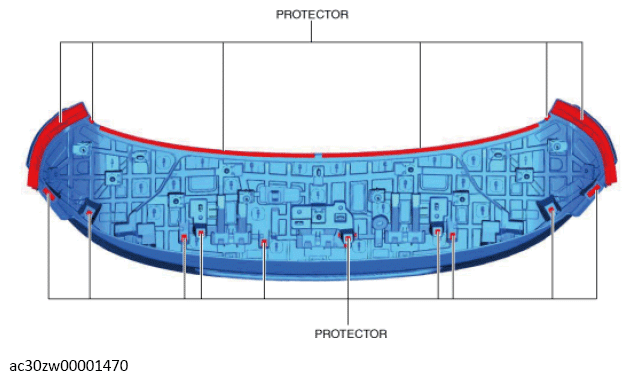

If the protector is damaged, replace the part that is damaged with a new protector.

Courtesy of MAZDA MOTORS CORP.

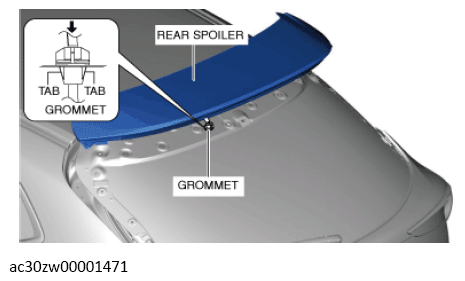

Install the grommet of the high-mount brake light wiring harness.

Courtesy of MAZDA MOTORS CORP.

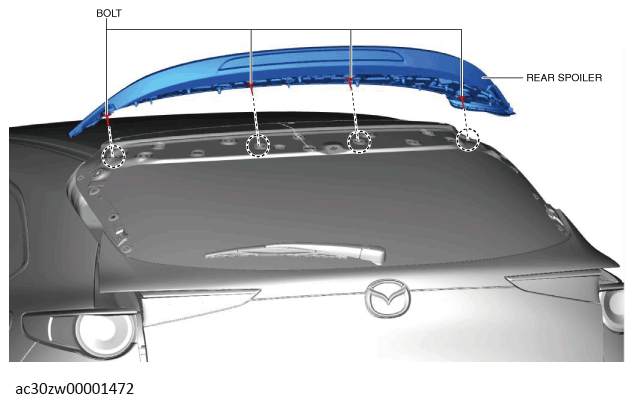

Align the bolts to the rear spoiler installation hole.

Courtesy of MAZDA MOTORS CORP.

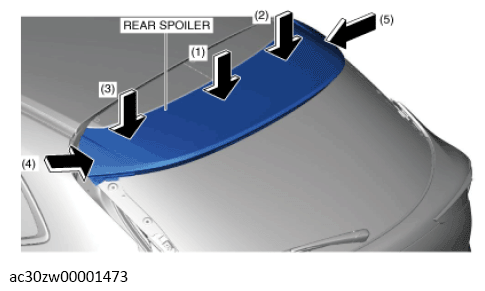

Push the rear spoiler in the direction of the arrows in the order of (1), (2), (3), (4), (5) and install the rear spoiler.

Courtesy of MAZDA MOTORS CORP.

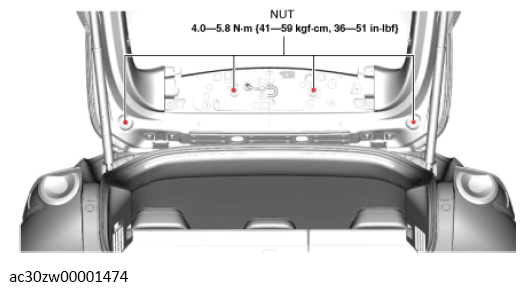

Install the nuts shown in the illustration, and install the rear spoiler.

Fig 1: Rear Spoiler Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

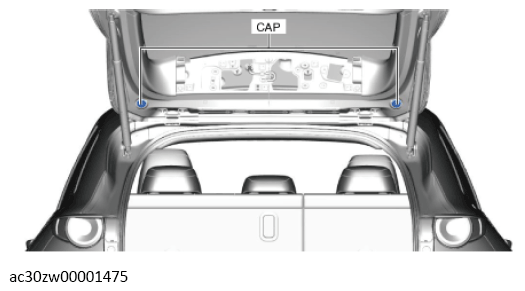

Install the caps shown in the illustration.

Courtesy of MAZDA MOTORS CORP.

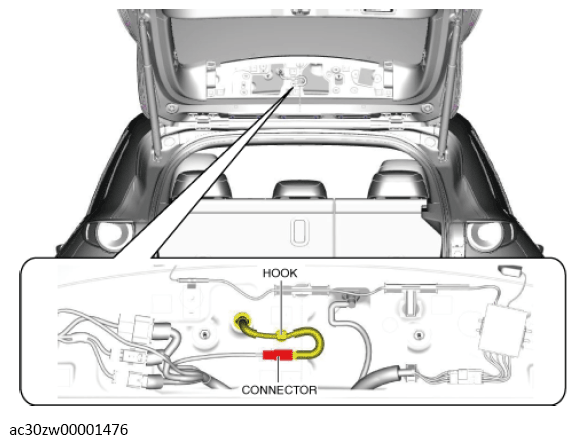

Connect the connector and install the wiring harness to the hook.

Courtesy of MAZDA MOTORS CORP.
Install the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
Install the side spoiler. (See SIDE SPOILER REMOVAL/INSTALLATION .)
Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
