Radiator Grille Disassembly/Assembly
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the following parts:
- Front camera. (with 360° view monitor system) (See FRONT CAMERA REMOVAL/INSTALLATION .)
- Front radar sensor (with front radar sensor) (See FRONT RADAR SENSOR REMOVAL/INSTALLATION .)

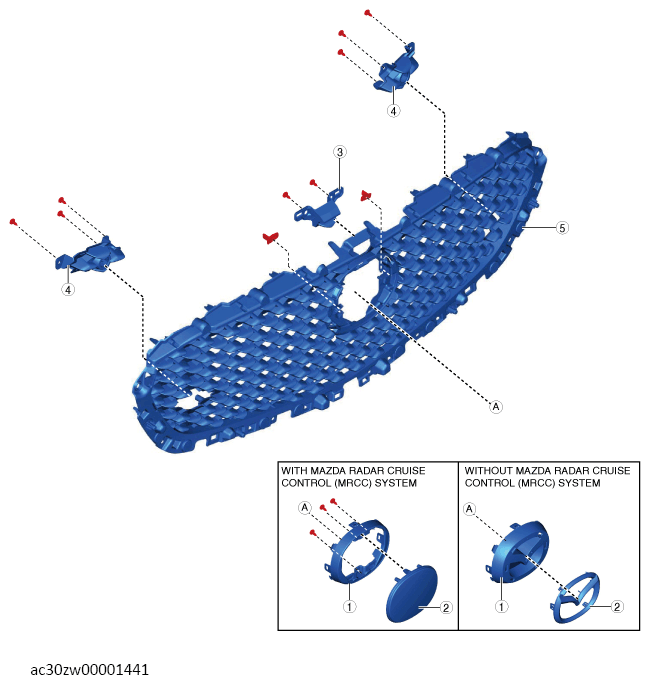

- Disassemble in the order indicated in the table.COMPONENT DESCRIPTION
1 Front center brand emblem base 2 Front center brand emblem 3 Cap (without 360° view monitor system) 4 Bracket 5 Grille mesh - Assemble in the reverse order of disassembly.
