Side Step Molding Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

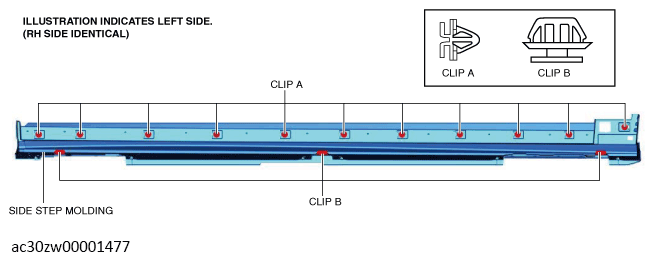

- Install clips A and B to the side step molding.

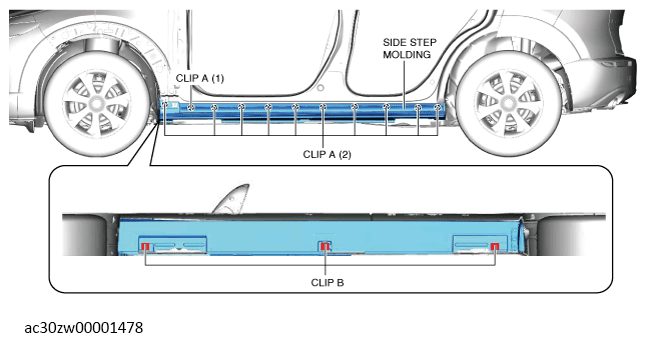

- Press the side step molding and install clips A to the body in the order of (1), (2).
- Press the side step molding and install clips B to the body.
- Install the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
- Install the rear deflector. (See DEFLECTOR REMOVAL/INSTALLATION .)
