Roof Carrier Bracket Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the headliner preparation. (See HEADLINER REMOVAL/INSTALLATION [(US)] .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  3. Remove the following parts:
    1. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION [(US)] .)
    2. Sun visor (See SUN VISOR REMOVAL/INSTALLATION .)
    3. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    4. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION [(US)] .)
    5. Front seat belt lower anchor (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    6. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    7. Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    8. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    9. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    10. Shift lever knob (MTX)
    11. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    12. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    13. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    14. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    15. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    16. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    17. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION [(US)] .)
    18. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    19. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [(US)] .)
    20. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
    21. Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION .)
    22. Rear vent duct (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    23. Rear console bracket No. 1 (See REAR CONSOLE REMOVAL/INSTALLATION [(US)] .)
    24. Headliner (See HEADLINER REMOVAL/INSTALLATION [(US)] .)
    25. Roof molding (See ROOF MOLDING REMOVAL .) (See ROOF MOLDING INSTALLATION .)
  4. Remove the nuts.

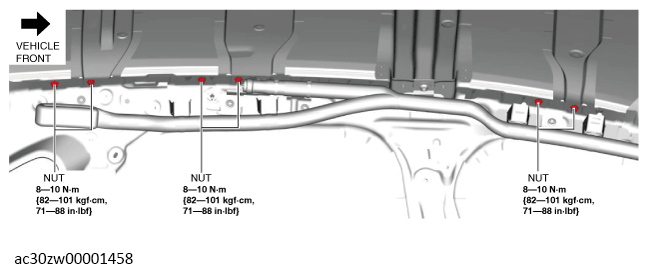

    Fig 1: Roof Carrier Bracket Nuts With Torque Specification
    G13560581Courtesy of MAZDA MOTORS CORP.
  5. Remove the roof carrier brackets.

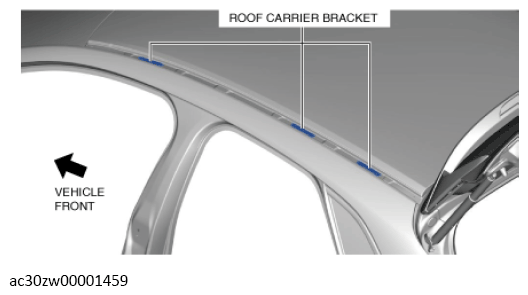

    G13560582Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
