Sail Garnish Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Replacement part

Clip

Quantity: 3

Location of use: Sail garnish

Fully open the front door glass.

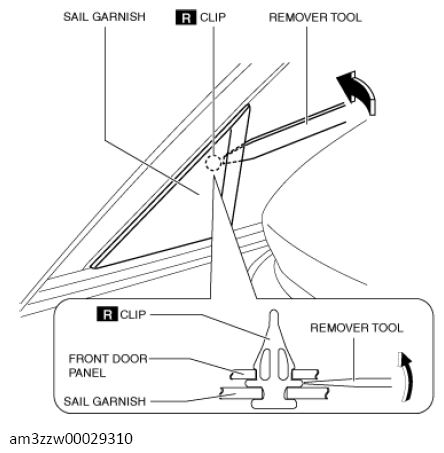

Insert a remover tool, move it in the direction of the arrow shown in the illustration, and remove the clip.

Courtesy of MAZDA MOTORS CORP.

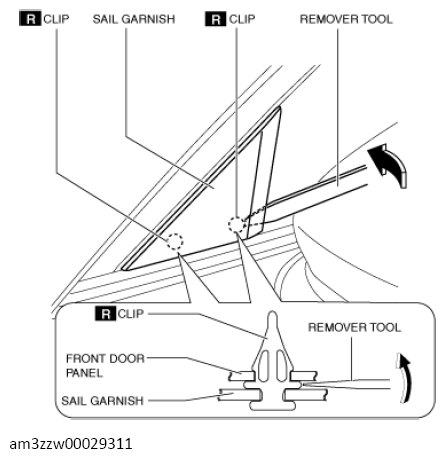

Insert a remover tool, move it in the direction of the arrow shown in the illustration, remove the clips, and remove the sail garnish.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
