FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Lift up the vehicle.
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)

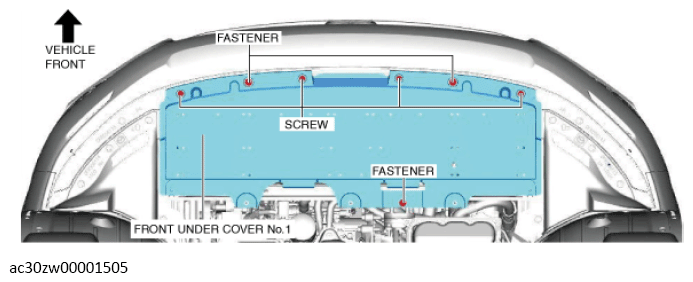

- Remove the screws and fasteners shown in the illustration.

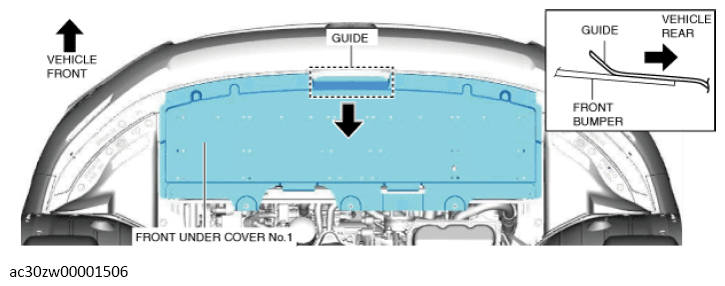

- Remove the front under cover No. 1 in the direction of the arrow shown in the illustration while detaching the guide.
- Install in the reverse order of removal.
