Side Step Molding Removal

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear deflector. (See DEFLECTOR REMOVAL/INSTALLATION .)
  2. Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION .)

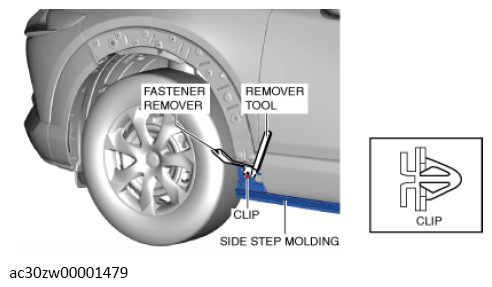

  3. Insert a remover tool and fastener remover shown in the illustration, and detach the clip from the body.
    G13560601Courtesy of MAZDA MOTORS CORP.

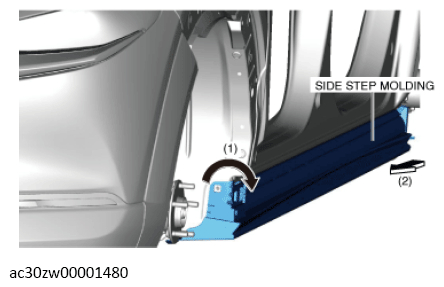

  4. Remove the side step molding in the direction of arrow (2) shown in the illustration while pulling it in the direction of arrow (1).
    G13560602Courtesy of MAZDA MOTORS CORP.
  5. After removing the side step molding, remove the clips from the body using a fastener remover.
