Rear Spoiler Removal

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the side spoiler. (See SIDE SPOILER REMOVAL/INSTALLATION .)
  3. Remove the litigate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)

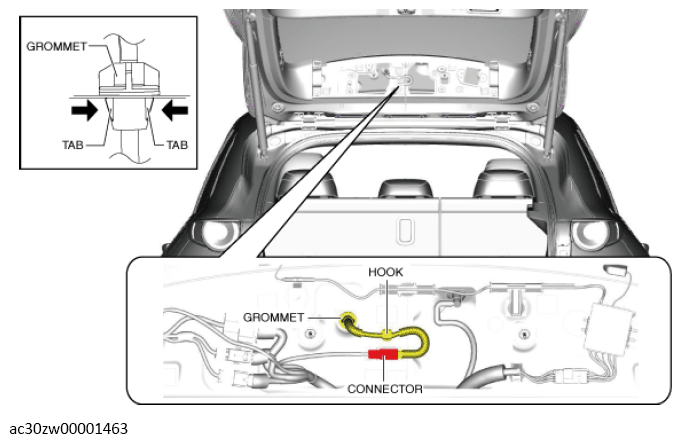

  4. Disconnect the connector and remove the wiring harness from the hook.
    G13560575Courtesy of MAZDA MOTORS CORP.
  5. Disengage the grommet tabs from the liftgate.

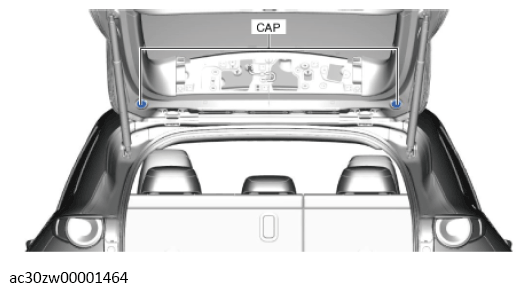

  6. Remove the caps.
    G13560576Courtesy of MAZDA MOTORS CORP.

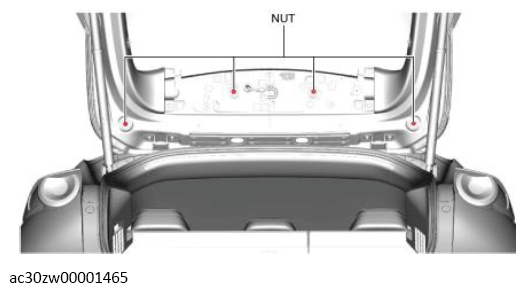

  7. Remove the nuts.
    G13560577Courtesy of MAZDA MOTORS CORP.

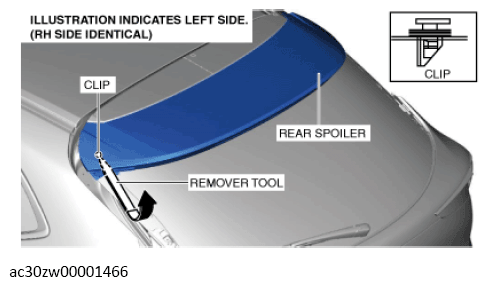

  8. Insert a remover tool in the position shown in the illustration.
    G13560578Courtesy of MAZDA MOTORS CORP.
  9. Move the remover tool in the direction of the arrow shown in the illustration and disengage the rear spoiler clip from the liftgate.
    CAUTION:
    • Remove the rear spoiler using two people. Otherwise, it may fall off and be damaged.

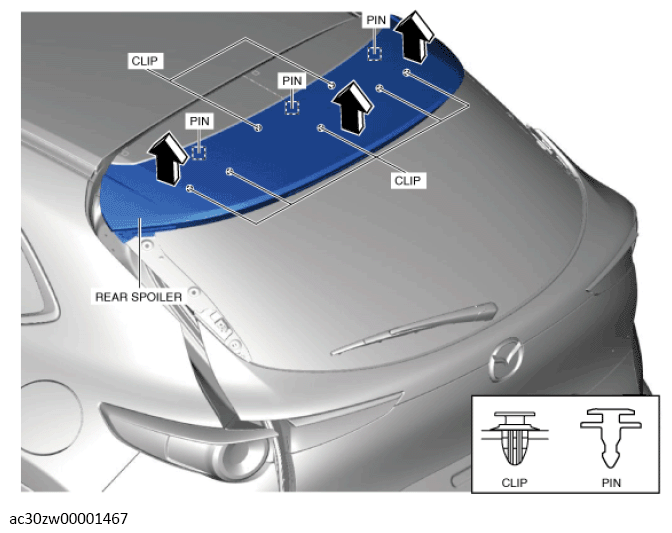

  10. Pull the rear spoiler in the direction of the arrows and remove it while detaching the pins and clips.
    G13560579Courtesy of MAZDA MOTORS CORP.

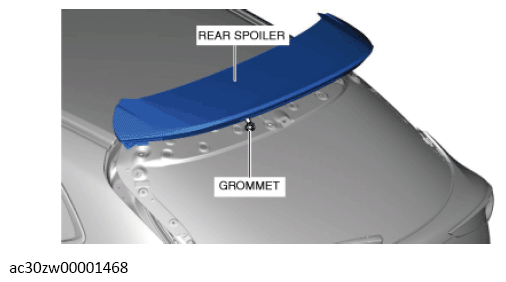

  11. Remove the rear spoiler while pulling out the wiring harness.
    G13560580Courtesy of MAZDA MOTORS CORP.
    NOTE:
