Installing the right intake plenum

Screws of the right intake plenum

Courtesy of BMW OF NORTH AMERICA, INC.

Arrows screws

NOTE: RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

Replace the seal (1) .
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.
Check the seal (1) on the charge air cooler (2) for damage, replace it if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

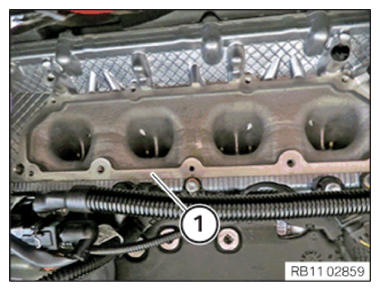

Clean sealing surface (1) with special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in the right intake plenum (2) and install it.

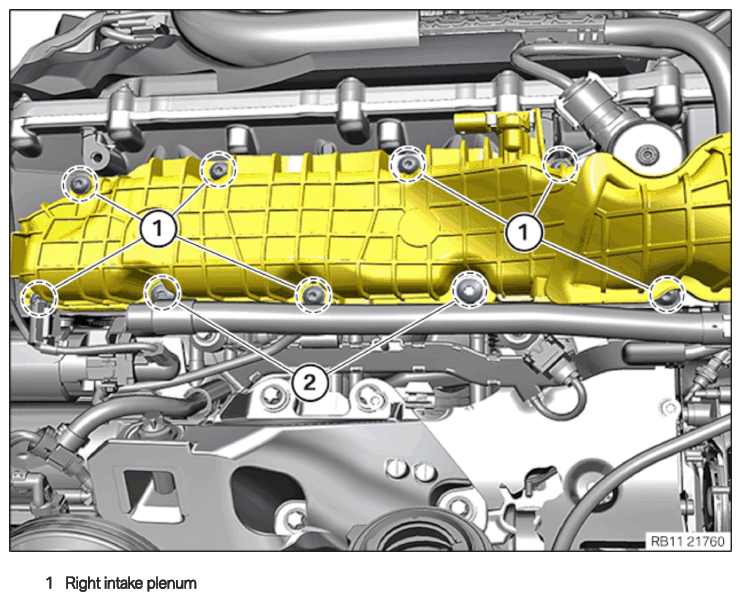

Tighten the screws (2) .

TIGHTENING TORQUE SPECIFICATIONS

Intake plenum
M8 screw	Tightening torque	21.4 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Intake plenum
M6 screw	Tightening torque	10 Nm

Connect and lock the connector of the intake air temperature sensor.
Fasten the wiring harness section (4) at the clamp (arrowed).
Fasten the plug connector (3) using the clamp (arrowed).
Connect connectors (2) and lock.
The connector (2) must engage audibly.
Secure the positive battery cable (1) at the clamp (arrowed).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (2) and lock.
The connector (2) must engage audibly.
Connect and lock tank vent line (1) .
The tank vent line (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Lock clamp (1) .
Clamp (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
