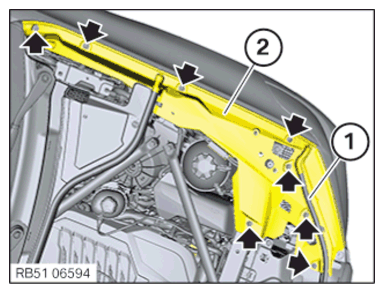

Install the cover in the engine compartment at top left and right

Install the cover in the engine compartment on top

• Guide in and correctly position the cover (2).
• Clip the seal for hood (1) in the area of cover (2) to the clips.
• Mount the expanding rivets (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

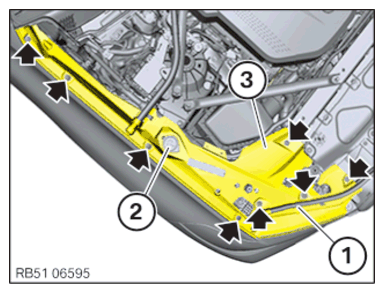

Install the cover in the engine

compartment on the top right

• Guide in and correctly position the cover (3).
• Mount the expanding rivets (arrows).
• Clip the seal for hood (1) in the area of cover (3) to the clips.
• Mount the lid (2) of the washer fluid reservoir.

  Courtesy of BMW OF NORTH AMERICA, INC.
