Install the stiffening plate
- Version A (N63):

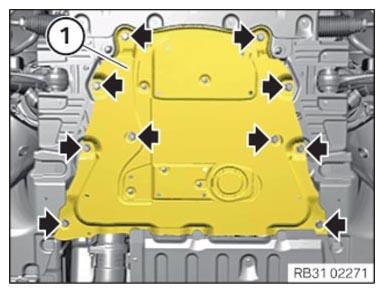

- Maneuver stiffening panel (1) into place in wheel arch trim panels and position on front subframe.
- Replace the bolts (arrows).
Parts: Screws
- Tighten screws (arrows).TIGHTENING TORQUES SPECIFICATION
Thrust field to front axle support M10
Replace screws.Snug torque 56 Nm Angle of rotation 90° - Variant B (S68):

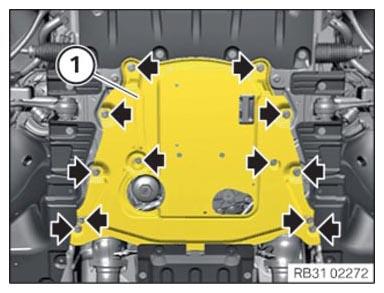

- Maneuver stiffening panel (1) into place in wheel arch trim panels and position on front subframe.
- Replace the bolts (arrows).
Parts: Screws
- Tighten screws (arrows).TIGHTENING TORQUES SPECIFICATION
Thrust field to front axle support M10

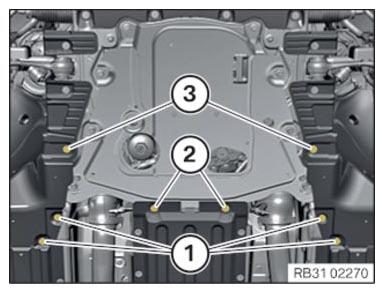

Replace screws.Snug torque 56 Nm Angle of rotation 90° - Tighten down screws (3).TIGHTENING TORQUES SPECIFICATION
Cover, steering unit Thermoplastic hexagon screw tightening torque 2.6 Nm - Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Undershield/frame Hexagon screw tightening torque 3 Nm - Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Wheel arch cover Thermoplastic hexagon screw tightening torque 2.6 Nm Plastic nut tightening torque 2.6 Nm
