Install reinforcement strut

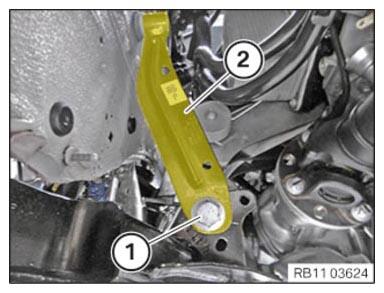

Position the reinforcement strut (2).
Pilot the screw (1) on the front axle support

Courtesy of BMW OF NORTH AMERICA, INC.

Pilot the screw (1) and tighten.

TIGHTENING TORQUES SPECIFICATION

Reinforcement strut to engine mount
M 12x120	tightening torque	108 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screw (1) at the reinforcement strut (2).

TIGHTENING TORQUES SPECIFICATION

Reinforcement strut to front subframe
M 12x25	tightening torque	108 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
