Attaching the brake caliper on the left and right

NOTE: Perform the steps on the right and left side.

Securing the brake caliper

NOTE: TECHNICAL INFORMATION
After a brake pad exchange and before pressing the brake pedal: Always apply the electromechanical parking brake.
If this is not observed, a CC message appears and the brake system switches to the emergency program. The brake booster is no longer active.

NOTE: TECHNICAL INFORMATION
Secure component against falling.

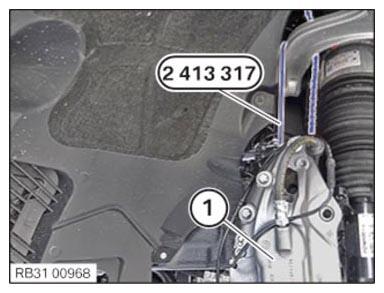

Release and remove special tool 2 413 317.
NOTE: Do not allow the brake caliper (1) to hang from the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.

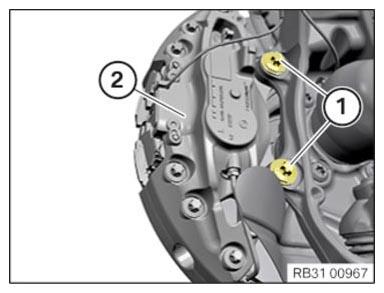

Position the brake caliper (2) on the swivel bearing.
Replace screws (1).
Parts: Screws

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Brake caliper/brake anchor plate at front swivel bearing
M12 Replace screw.	tightening torque	130 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

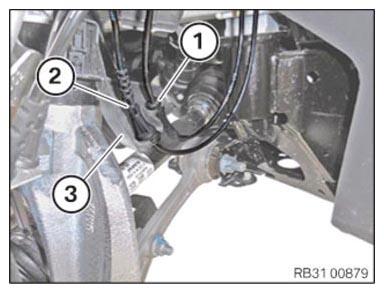

Attach the cable (2) on the holder (3).
Only left: Attach the cable (1) on the holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

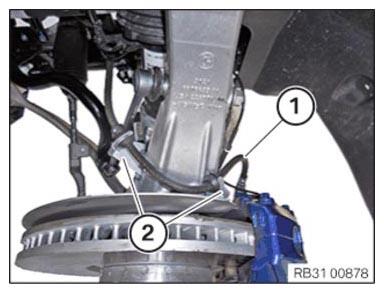

Fasten brake hose (1) to the brackets (2).

Courtesy of BMW OF NORTH AMERICA, INC.
