Install the front left and right wheels

NOTE: Perform the steps on the left and right side.

Mounting the wheel

Clean the contact surfaces between the brake disc and the wheel rim

NOTE: TECHNICAL INFORMATION
Contact surface between brake disk and rim must be clean and free from oil and grease. Otherwise there is a risk of the wheel coming loose at a later stage.

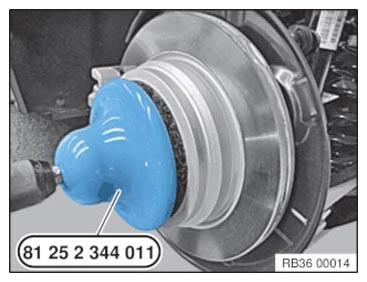

Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011.
Do not operate special tool 2 344 011 with an impact screwdriver.
Degrease the contact surfaces with the universal cleaner (see BMW Group Parts).
If there are grease deposits in the area of the wheel bolt holes, remove and clean the brake disc.

Courtesy of BMW OF NORTH AMERICA, INC.

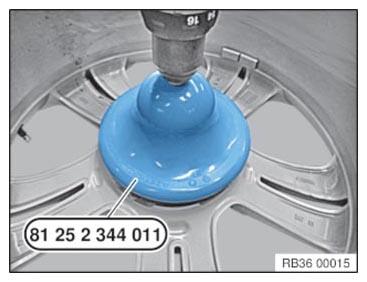

Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011.
Do not operate special tool 2 344 011 with an impact screwdriver.
Degrease the contact surfaces with the universal cleaner (see BMW Group Parts).

Courtesy of BMW OF NORTH AMERICA, INC.

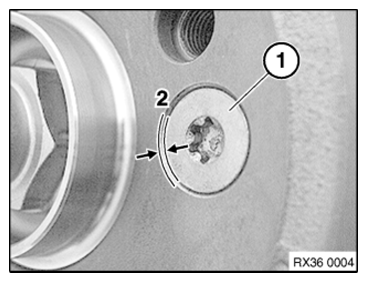

Check if the mounting bolt (1) has been fitted correctly for the brake disk.

The mounting bolt (1) for the brake disk cannot protrude on the contact surface (2) between the brake disk and the rim.

TIGHTENING TORQUES SPECIFICATION

Brake disc to front wheel hub
M8	Tightening torque	16 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Brake disc to rear wheel hub
M8	Tightening torque	16 Nm

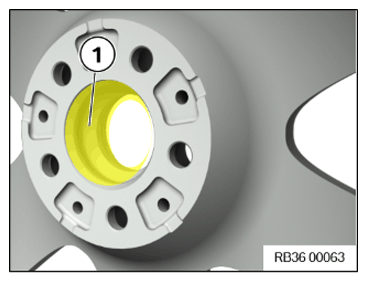

Lightly grease the wheel centering (1) in the rim.

CONSUMABLE SPECIFICATION

Brake block paste *TU = Trade Unit. TU	3g, Bag	83192158851
numbers cannot be ordered! For invoicing purposes only.	100g Tube	83192158852
	5g, TU*	83230140233

Courtesy of BMW OF NORTH AMERICA, INC.

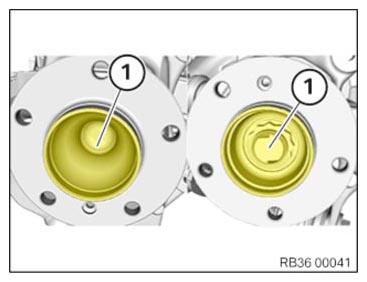

Lightly grease the front and rear wheel hubs in the area (1) for protection against corrosion.

CONSUMABLE SPECIFICATION

Brake block paste *TU = Trade Unit. TU	3g, Bag	83192158851
numbers cannot be ordered! For invoicing purposes only.	100 g, Tube	83192158852
	5g, TU*	83230140233

Courtesy of BMW OF NORTH AMERICA, INC.

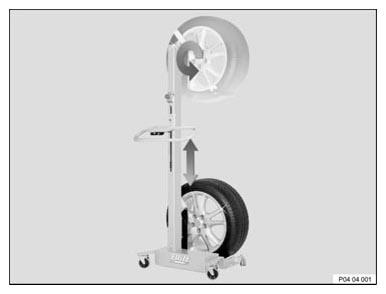

In vehicles with M Carbon ceramic brake: The wheel assembly jack must be used to install the wheel (see applicable BMW Workshop Equipment Catalog).
This process is intended to prevent damage to the brake disc.

Courtesy of BMW OF NORTH AMERICA, INC.

Check

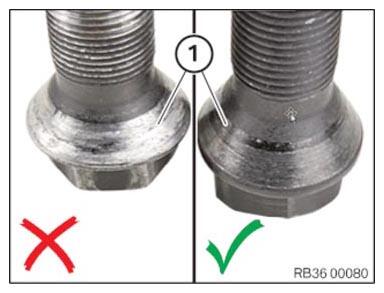

Check lug bolts for wear.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Spots (> 30%) of the bearing surface (1) of the taperon the screw head show silvery wear.

Measure
Replace wheel bolts.
NOTE: TECHNICAL INFORMATION

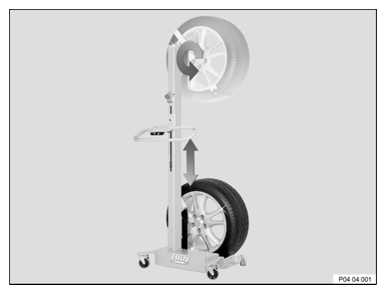

A wheel lifter is recommended for easier wheel removal and installation without applying force (see Dealer Equipment Catalog).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Never use an impact screwdriver or electric screwdriver to apply and tighten the lug bolts.
The rim must rest uniformly against the brake disk.
In the case of non-original BMW lug bolts/wheel rims, it may be necessary to retighten the lug bolts on user account of setting properties (refer to the documentation from the manufacturer).
Do not apply oil to new lug bolts.
Recutting a damaged thread (wheel bolt/wheel hub) is not permissible!

Courtesy of BMW OF NORTH AMERICA, INC.

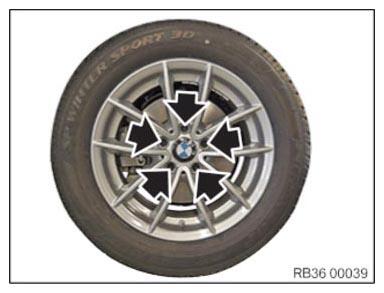

Replace the corroded lug bolts (arrows).
Clean the lug bolts (arrows).
Check lug bolts (arrows) and threads for damage, replace lug bolts (arrows) if necessary.

Join and tighten the wheel bolts (arrows).

TIGHTENING TORQUES SPECIFICATION

Wheel bolts
M14/key range 17 Screw in the lug bolts and evenly tighten crosswise by hand in order to center the rim. Tighten lug bolts to the prescribed tightening torque with a calibrated torque wrench in a crosswise sequence. Check all the lug bolts in the same order or retighten to the specified tightening torque.	tightening torque	140 Nm
	Check	140 Nm
