Securing the transmission oil cooling bracket

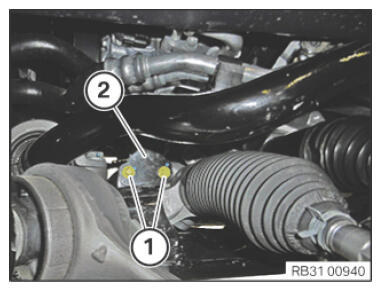

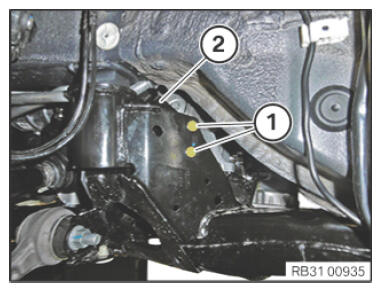

- Position the bracket (2) on the front axle support.
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Standard screw connection M6 M6 Tightening torque 8 Nm - Position the bracket (2) on the front axle support.
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Standard screw connection M6 M6 Tightening torque 8 Nm
