Fastening coolant hose to the front subframe
NOTE:
The following step(s) must be performed if the specified component(s) is/are installed.

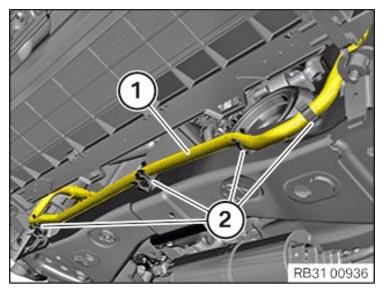

- Fasten coolant hose (1) to the holders (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

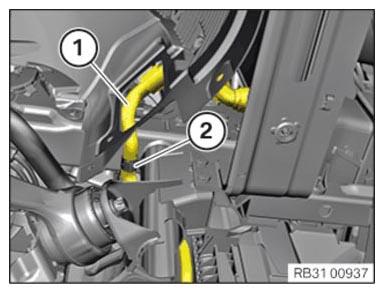

- Secure the coolant hose (1) at the holder (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
