Install the rear right engine compartment cover

Remove the battery cover

• Raise the battery ground cable.
• Remove special tool 2 452 007.

  Courtesy of BMW OF NORTH AMERICA, INC.

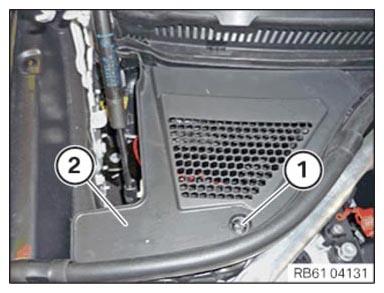

• Position the cover (2).
• Lock the lock (1).

  Courtesy of BMW OF NORTH AMERICA, INC.
